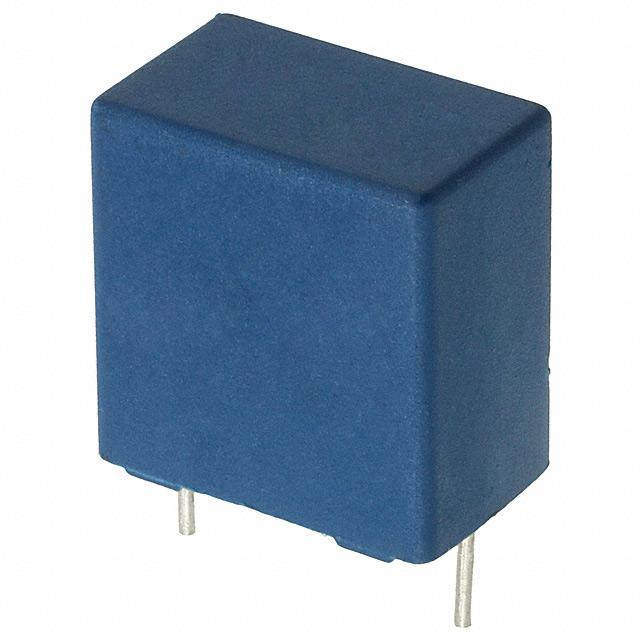

B32022A3823M EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32022A3823M

Part No B32022A3823M
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.082UF 20% 1.5KVDC RAD
Datasheet
B32022A3823M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 0.082μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.433" W (18.00mm x 11.00mm)
Height - Seated (Max) 0.728" (18.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 199579-B32022A3823M
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32022A3823M CAD Model

Description

B32022A3823M Capacitor

The B32022A3823M is synonymous with advanced electronic designs. This capacitor is developed for circuits requiring pinpoint precision and sustained performance across varying conditions.

  • Applications:
    • RF applications
    • Instrumentation and control
    • Networking equipment
  • Features and Benefits:
    • Optimal frequency response
    • Robust mechanical stability
    • High Q factor
    • Flexible installation options
  • Additional Details:
    • Ceramic Type: High-grade materials used
    • Size: Available in several configurations
    • Durability: Designed for long-term reliability
