Same model may have multiple batches, images only for reference.

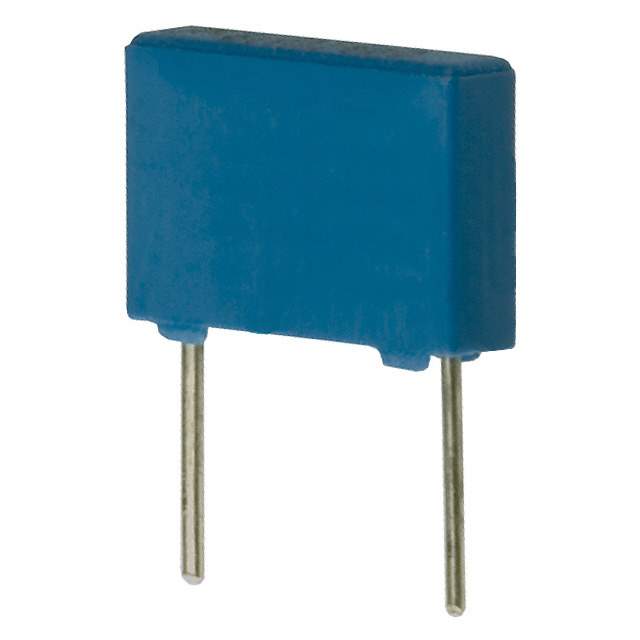

B32520C3223J Real Image
Same model may have multiple batches, images only for reference.

B32520C3223J

Part No B32520C3223J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.022UF 5% 250VDC RAD
Datasheet
B32520C3223J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Obsolete(EOL)
Capacitance 0.022μF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.394" L x 0.098" W (10.00mm x 2.50mm)
Height - Seated (Max) 0.276" (7.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 101811-B32520C3223J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32520C3223J CAD Model

Description

Description

The B32520C3223J is a versatile capacitor renowned for its stable performance across a wide range of temperatures and operating conditions.

Features and Benefits

  • Capacitance value: 22 nF
  • Rated Voltage: 250 VDC
  • Wide temperature range
  • High insulation resistance
  • Low leakage current

Applications

  • AC/DC converters
  • Inductive load management
  • Renewable energy systems
  • Control circuits

Additional Details

Its wide temperature range and high insulation resistance make the B32520C3223J ideal for demanding industrial applications, offering reliability even in harsh environments.
