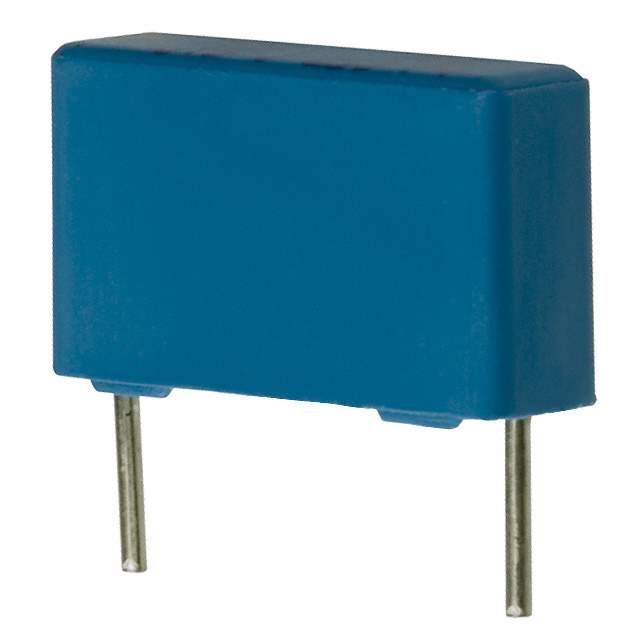

B32672L8472J000 Real Image
Same model may have multiple batches, images only for reference.

B32672L8472J000

Part No B32672L8472J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 4700PF 5% 2KVDC RADIAL
Datasheet
B32672L8472J000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 4700pF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 1021459-B32672L8472J000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32672L8472J000 CAD Model

Description

The EPCOS (TDK) Capacitor with 4700pF capacitance and a tolerance of ±5% is a through-hole component designed for High Frequency, Switching, High Pulse, and DV/DT applications.

  • Capacitance: 4700pF
  • Tolerance: ±5%
  • Applications: High Frequency, Switching, High Pulse, and DV/DT applications
  • Voltage Rating (AC): 700V
  • Voltage Rating (DC): 2000V (2kV)
  • Dielectric Material: polypropylene (PP), metallized
  • Lead Spacing: 0.591" (15.00mm)
  • Height: 0.413" (10.50mm)
  • Dimension: 0.709" L x 0.197" W (18.00mm x 5.00mm)
  • Packaging: bulk
  • Category: Capacitors
  • Market Status: sufficient.
