Same model may have multiple batches, images only for reference.

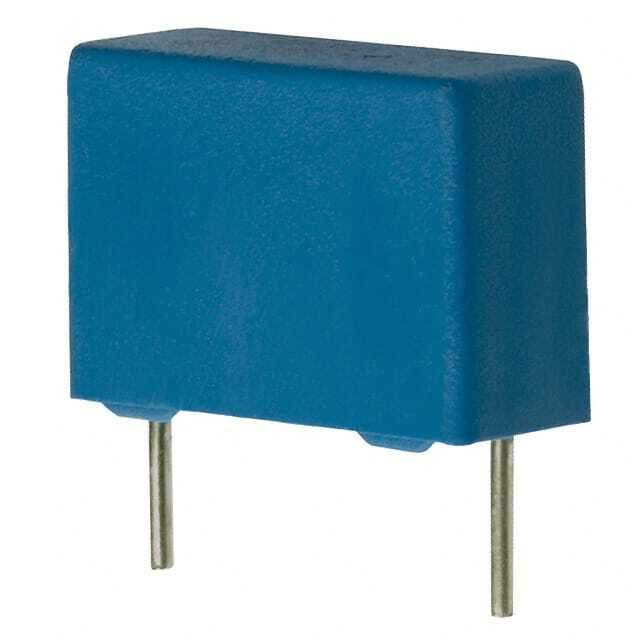

B32922C3224M189 Real Image
Same model may have multiple batches, images only for reference.

B32922C3224M189

Part No B32922C3224M189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 20% 630VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS (TDK)
Series B3292*C/D - X2 Standard
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Capacitance 0.22 µF
Tolerance ±20%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.276" W (18.00mm x 7.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
Standard Package 900 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 843162-B32922C3224M189
Ultra Librarian 3D Model Ultra Librarian B32922C3224M189 CAD Model

Description

The B3292*C/D - X2 Standard series film capacitor is a reliable and high-performance component designed for various electronic applications.

  • Capacitance: 0.22 µF
  • Tolerance: ±20%
  • Application: EMI and RFI Suppression
  • Voltage Rating: 305V AC, 630V DC
  • Dielectric Material: Polypropylene (PP)
  • Termination: PC Pins
  • Mounting: Through-Hole
  • Package Size: 0.709" L x 0.276" W (18.00mm x 7.00mm)
  • Seated Height: 0.492" (12.50mm)
  • Packaging: Tape & Reel (TR) / Cut Tape (CT)
  • Standard Package: 900 pcs
  • Manufacturer: EPCOS (TDK)
