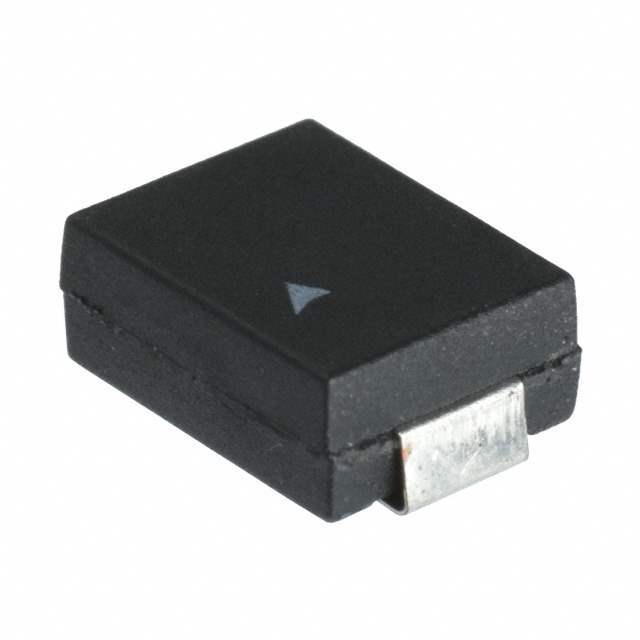

B59215P1080A062EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B59215P1080A062

Part No B59215P1080A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 80V 65MA 3225
Datasheet
B59215P1080A062 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Part Status Active
Type Ceramic
Voltage - Max 80V
Current - Hold (Ih) (Max) 65 mA
Current - Trip (It) 135 mA
Current - Max 1 A
Resistance - 25°C (Typ) 25 Ohms
Operating Temperature -40°C ~ 60°C
Mounting Type Surface Mount
Package / Case 3225 (8063 Metric)
Size / Dimension 0.315" L x 0.248" W (8.00mm x 6.30mm)
Thickness (Max) 0.150" (3.80mm)
Ultra Librarian 3D Model Ultra Librarian B59215P1080A062 CAD Model

Description

Ceramic PTC Resettable Fuse 80V 65 mA Ih Surface Mount 3225 (8063 Metric)
