Same model may have multiple batches, images only for reference.

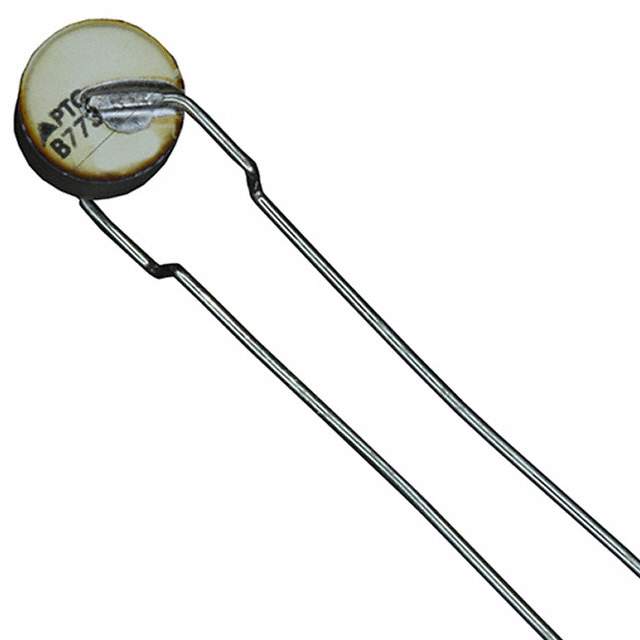

B59773B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59773B0120A070

Part No B59773B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 550V RADIAL DISC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features Ceramic PTC Resettable Fuse 550V Ih Through Hole Radial, Disc
Manufacturer EPCOS (TDK)
Package Bulk
Operating Temperature Range 0°C ~ 60°C
Mounting Through Hole
Package Radial, Disc
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 495-3889, B59773B 120A 70, B59773B0120A070-ND, B59773B120A70, B59773B120A70-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912553-B59773B0120A070
Ultra Librarian 3D Model Ultra Librarian B59773B0120A070 CAD Model

Description

The EPCOS B59773B0120A070 is a ceramic PTC resettable fuse with a voltage rating of 550V and a current rating of 120A. It has a radial, disc package and can operate in a temperature range of 0°C to 60°C.

  • Manufacturer: EPCOS
  • Type: Ceramic PTC Resettable Fuse
  • Voltage Rating: 550V
  • Current Rating: 120A
  • Package: Radial, Disc
  • Operating Temperature: 0°C to 60°C
  • Package Type: Bulk
  • Quantity per Package: 1000
