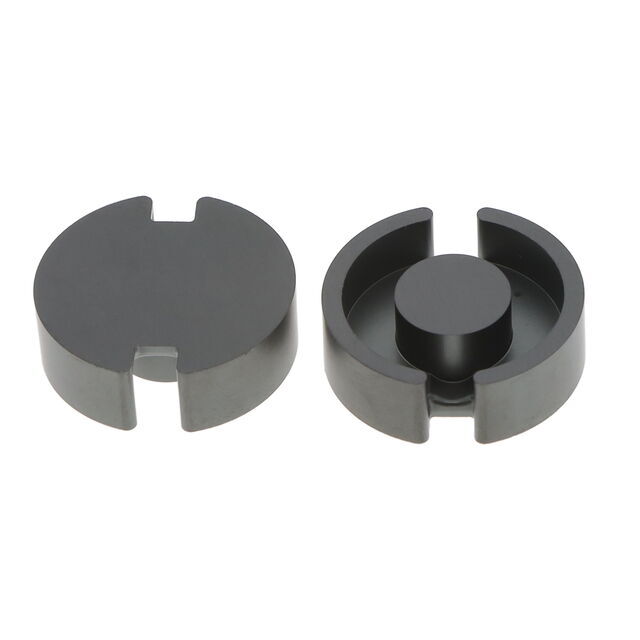

B65671W0000R087 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65671W0000R087

Part No B65671W0000R087
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N87 Ferrite Core P (Pot Core) Type Length Width 1.024" (26.00mm) Diameter 0.321" (8.15mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P26/16
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 26 x 16
Material N87
Diameter 1.024" (26.00mm)
Inductance Factor (Al) 5.5 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1620.0
Initial Permeability (µi) 2200
Core Factor (ΣI/A) mm⁻¹ 0.37
Effective Length (le) mm 40.0
Effective Area (Ae) mm2 108.0
Minimum Core Cross Section (Amin) mm2 87.0
Effective Magnetic Volume (Ve) mm3 4320.0
Finish Uncoated
Height 0.321" (8.15mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489758-B65671W0000R087
Ultra Librarian 3D Model Ultra Librarian B65671W0000R087 CAD Model
