B65733A6300L027 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

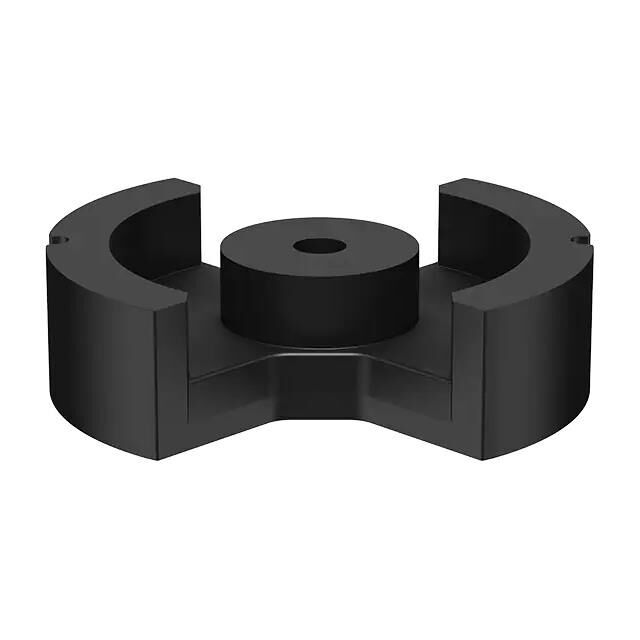

B65733A6300L027

Part No B65733A6300L027
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N27 Ferrite Core PM Type Length Width 4.488" (114.00mm) Diameter 1.831" (46.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series PM114/93
Packaging Box
Core Type PM
Supplier Device Package PM 114 x 93
Material N27
Diameter 4.488" (114.00mm)
Inductance Factor (Al) 6.3 µH
Tolerance ±15%
Gap Gapped
Effective Permeability (µe) 583.0
Initial Permeability (µi) 2000
Core Factor (ΣI/A) mm⁻¹ 0.116
Effective Length (le) mm 200.0
Effective Area (Ae) mm2 1720.0
Minimum Core Cross Section (Amin) mm2 1380.0
Effective Magnetic Volume (Ve) mm3 344000.0
Finish Uncoated
Height 1.831" (46.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489811-B65733A6300L027
Ultra Librarian 3D Model Ultra Librarian B65733A6300L027 CAD Model
