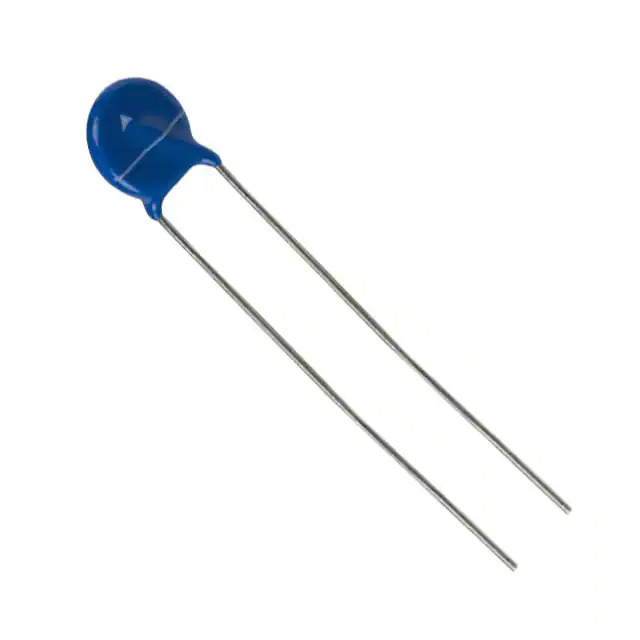

B72207S0500K111 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B72207S0500K111

Part No B72207S0500K111
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 82V 1.2KA DISC 7MM / 82 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series Standard
Package Tape & Reel (TR)
Product Status Active
Maximum AC Volts 50 V
Maximum DC Volts 65 V
Varistor Voltage (Min) 73.8 V
Varistor Voltage (Typ) 82 V
Varistor Voltage (Max) 90.2 V
Current - Surge 1.2 kA
Energy 4.2J
Number of Circuits 1
Capacitance @ Frequency 530 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 7mm
Base Product Number B72207S
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1355564-B72207S0500K111
Ultra Librarian 3D Model Ultra Librarian B72207S0500K111 CAD Model

Description

The B72207S series transient voltage suppressor from EPCOS - TDK Electronics is a reliable circuit protection component designed to protect electronic circuits from voltage transients and surges.

  • Temperature Range: -40°C to 105°C
  • Capacitance: 530 pF @ 1 kHz
  • Surge Current Rating: 1.2 kA
  • Package/Case: Disc 7mm
  • Mounting Type: Through-Hole
  • Product Status: Active
  • Packaging: Tape & Reel
  • REACH: Unaffected by REACH regulations
