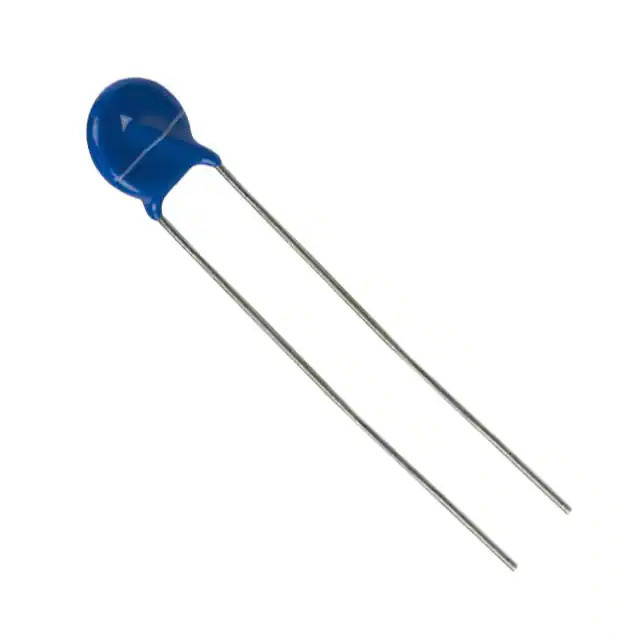

B72207S1140K111 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B72207S1140K111

Part No B72207S1140K111
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 250A DISC 7MM / 22 V 250 A Varistor 1 Circuit Through Hole Disc 7mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series Standard
Package Tape & Reel (TR)
Product Status Active
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 19.8 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 24.2 V
Current - Surge 250 A
Energy 0.9J
Number of Circuits 1
Capacitance @ Frequency 2300 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 7mm
Base Product Number B72207S
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361107-B72207S1140K111
Ultra Librarian 3D Model Ultra Librarian B72207S1140K111 CAD Model

Description

The B72207S1140K111 is a varistor from EPCOS - TDK Electronics.

  • Series: Standard
  • Temperature Range: -40°C to 105°C
  • Capacitance: 2300 pF @ 1 kHz
  • Varistor Voltage: 19.8 V to 24.2 V
  • Maximum AC Voltage: 14 V
  • Maximum DC Voltage: 16 V
  • Surge Current: Up to 250 A
  • Energy Rating: 0.9J
  • Mounting Type: Through-Hole
  • Package: Disc 7mm
  • Product Status: Active
  • REACH Restrictions: No REACH restrictions
  • ECCN: EAR99
