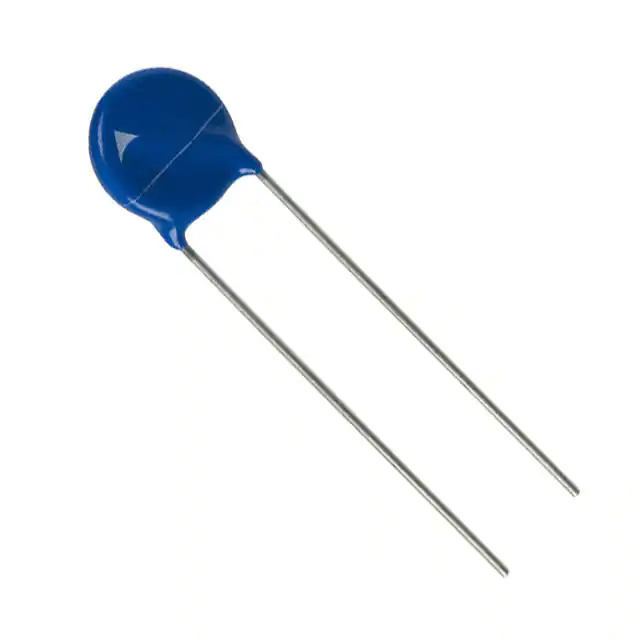

B72210S1140K501 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B72210S1140K501

Part No B72210S1140K501
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 500A DISC 10MM / 22 V 500 A Varistor 1 Circuit Through Hole Disc 10mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series Standard
Package Bulk
Product Status Active
Maximum AC Volts 14 V
Maximum DC Volts 16 V
Varistor Voltage (Min) 19.8 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 24.2 V
Current - Surge 500 A
Energy 2J
Number of Circuits 1
Capacitance @ Frequency 5200 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case Disc 10mm
Base Product Number B72210S
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360856-B72210S1140K501
Ultra Librarian 3D Model Ultra Librarian B72210S1140K501 CAD Model

Description

The B72210S1140K501 is a transient voltage suppressor (TVS) varistor from EPCOS - TDK Electronics.

  • Series: Standard
  • Capacitance: 5200 pF @ 1 kHz
  • Maximum AC Voltage: 14V
  • Varistor Voltage: 19.8V ~ 24.2V
  • Surge Current: 500A
  • Energy: 2J
  • Package / Case: Disc 10mm
  • Mounting Type: Through Hole
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Packaging: Bulk
