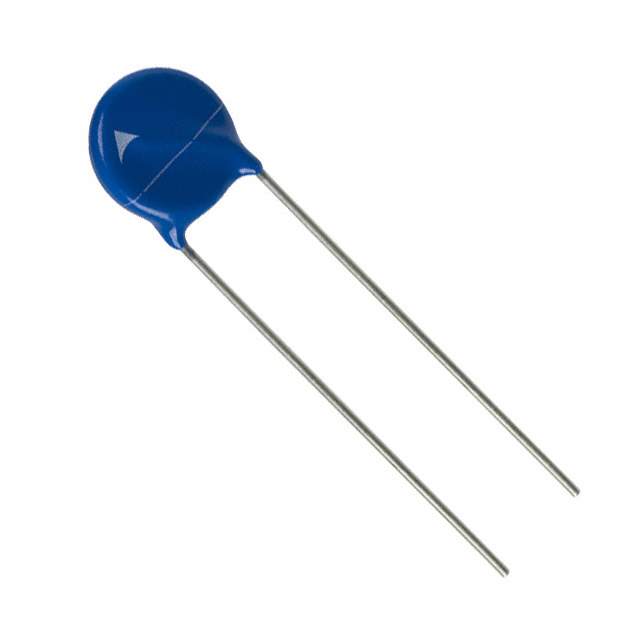

The B72210S141K101V87 is a metal oxide varistor (MOV) manufactured by EPCOS (TDK). MOVs are voltage-dependent resistors used for transient voltage suppression (TVS). They are designed to protect sensitive electronic components from voltage surges and spikes, such as those caused by lightning, electrostatic discharge (ESD), or switching transients.

Applications:

• Power Supplies: Used in power supplies to protect against voltage surges and transients.
• Consumer Electronics: Employed in televisions, computers, and other consumer electronics to protect against ESD and other voltage transients.
• Industrial Equipment: Utilized in industrial equipment to protect against voltage surges and transients caused by motor switching and other electrical events.
• Automotive Electronics: Integrated into automotive electronics to protect against voltage surges and transients in the vehicle's electrical system.
• Telecommunications Equipment: Used in telecommunications equipment to protect against voltage surges and transients caused by lightning and other electrical events.

Features:

• High Surge Current Capability: Designed to withstand high surge currents without failure.
• Fast Response Time: Responds quickly to voltage transients, providing effective protection.
• Wide Operating Voltage Range: Operates over a wide range of voltages, making it suitable for various applications.
• Compact Size: Small size allows for easy integration into electronic circuits.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances (RoHS) directive.

Benefits:

• Protection Against Voltage Surges: Protects sensitive electronic components from damage caused by voltage surges and transients.
• Improved System Reliability: Enhances the reliability of electronic systems by preventing failures caused by voltage surges.
• Reduced Downtime: Minimizes downtime caused by component failures due to voltage surges.
• Extended Equipment Lifespan: Extends the lifespan of electronic equipment by protecting against voltage surges.
• Cost-Effective Solution: Offers a cost-effective solution for transient voltage suppression.

Additional Details:

The B72210S141K101V87 MOV is characterized by its varistor voltage, surge current capability, and energy absorption capability. The varistor voltage is the voltage at which the MOV begins to conduct significantly, clamping the voltage to a safe level. The surge current capability is the maximum surge current that the MOV can withstand without failure. The energy absorption capability is the amount of energy that the MOV can absorb during a surge event.

MOVs operate by changing their resistance in response to voltage changes. When the voltage across the MOV exceeds its varistor voltage, the resistance decreases rapidly, allowing the MOV to conduct the surge current and clamp the voltage. This protects the downstream electronic components from the surge.

EPCOS (TDK) is a leading manufacturer of MOVs, offering a wide range of products for various applications. Their MOVs are known for their high quality, reliability, and performance.
