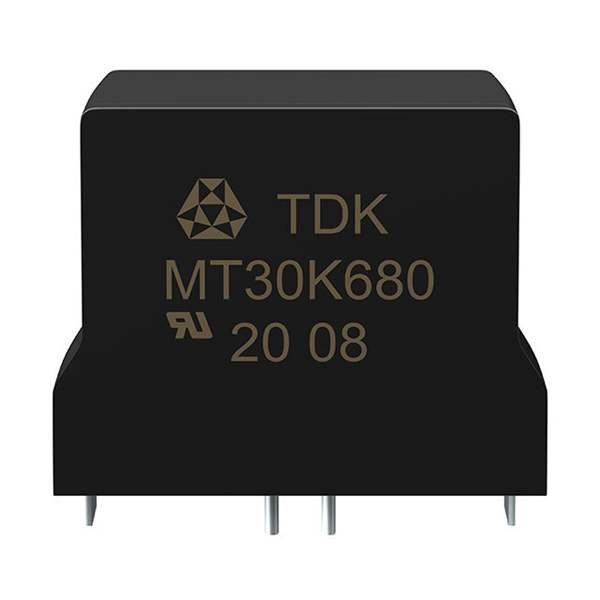

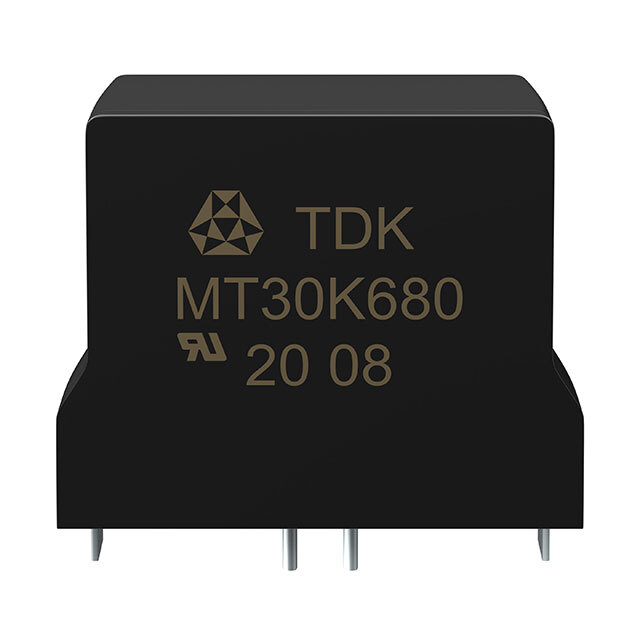

B72230M0681M401 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B72230M0681M401

Part No B72230M0681M401
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description 1.1 kV 25 kA Varistor 1 Circuit Through Hole Box, 4 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series MT30 Type 1
Packaging Tray
Maximum AC Volts 680 V
Maximum DC Volts 895 V
Varistor Voltage (Min) 990 V
Varistor Voltage (Typ) 1.1 kV
Varistor Voltage (Max) 1.21 kV
Current - Surge 25 kA
Energy 940J
Number of Circuits 1
Capacitance @ Frequency 710 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 4 Lead
Base Product Number B72230M
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1482696-B72230M0681M401
Ultra Librarian 3D Model Ultra Librarian B72230M0681M401 CAD Model
