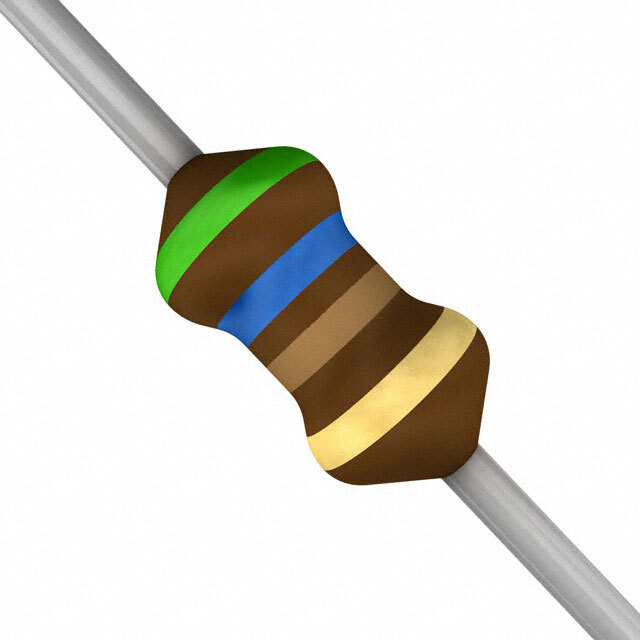

Same model may have multiple batches, images only for reference.
B82141A1564J000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82141A1564J000

Part No B82141A1564J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 560 µH Unshielded Drum Core, Wirewound Inductor 75 mA 16.5Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series SBC
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 µH
Tolerance ±5%
Current Rating (Amps) 75 mA
Shielding Unshielded
DC Resistance (DCR) 16.5Ohm Max
Q @ Freq 60 @ 796kHz
Frequency - Self Resonant 2.2MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 796 kHz
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.118" Dia x 0.268" L (3.00mm x 6.80mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1488676-B82141A1564J000
Ultra Librarian 3D Model Ultra Librarian B82141A1564J000 CAD Model
