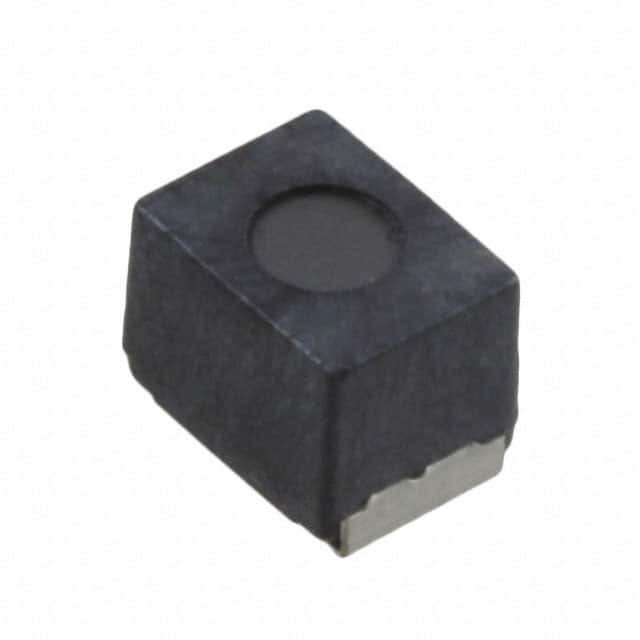

B82432C1223K000

Name: B82432C1223K000
Brand: EPCOS (TDK)
SKU: 1168203
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82432C1223K000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	FIXED IND 22UH 260MA 1.45OHM SMD / 22 µH Unshielded Drum Core, Wirewound Inductor 260 mA 1.45Ohm Max 2-SMD, J-Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	SIMID
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±10%
Current Rating (Amps)	260 mA
Shielding	Unshielded
DC Resistance (DCR)	1.45Ohm Max
Q @ Freq	30 @ 2.52MHz
Frequency - Self Resonant	16MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD, J-Lead
Supplier Device Package	1812 (4532 Metric)
Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	495-1748-1,-495-1748-1,-B82432C1223K,495-1748-2,B82432C1223K,495-1748-6,-495-1748-1-ND
Standard Package	2,500
Win Source Part Number	1168203-B82432C1223K000
Ultra Librarian 3D Model	Ultra Librarian B82432C1223K000 CAD Model

Alternative Products

Description

The EPCOS - TDK Electronics B82432C1223K000 Fixed Inductor is a high-quality and reliable product that is suitable for use in various electronic applications.

Type: drum core, wirewound
Inductance: 22 μH
Tolerance: ±10%
AEC-Q200: yes
Q @ Freq: 30 @ 2.52MHz
DC Resistance (DCR): 1.45Ohm Max
Current Rating: 260 mA
Material: ferrite
Shielding: unshielded
Temperature Range: -55°C to 125°C
Package/Case: 2-SMD, J-Lead
Height: 0.134" (3.40mm)
Dimensions: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Standard Package: 2,500
