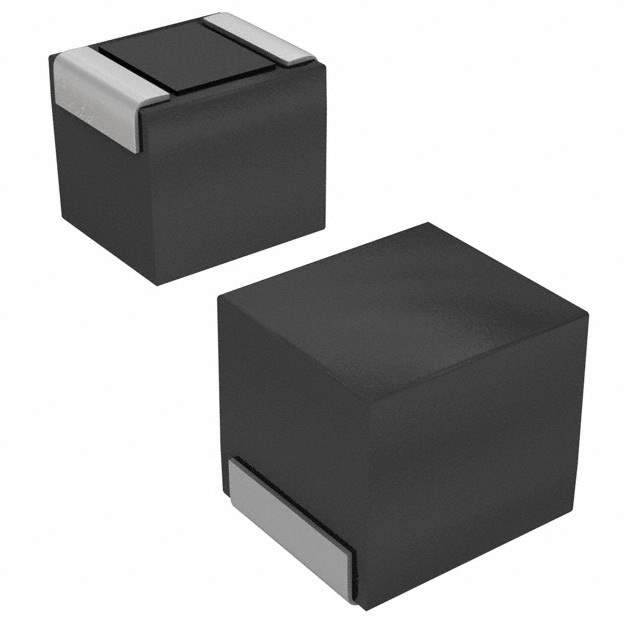

B82442T1473K50 Real Image
Same model may have multiple batches, images only for reference.

B82442T1473K50

Part No B82442T1473K50
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Ind General Purpose Chip Molded 47uH 10% 2.52MHz 15Q-Factor Ferrite 700mA 2220 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 2220
Case Code (Imperial) 2220
Case Code (Metric) 5650
Composition Wirewound
Core Material Ferrite
Current Rating 700 mA
DC Current 700 mA
DC Resistance (DCR) 519 mΩ
Depth 5.3 mm
Height 5.3 mm
Height - Seated (Max) 5.3086 mm
Inductance 47 µH
Length 5.6134 mm
Max DC Current 700 mA
Military Standard Not
Mount Surface Mount
Number of Pins 2
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Saturation Current 1.12 A
Schedule B 8504500000, 8504500000
Self Resonant Frequency 8 MHz
Shielding Unshielded
Test Frequency 2.52 MHz
Tolerance 10 %
Width 5.0038 mm
Win Source Part Number 1124248-B82442T1473K50
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82442T1473K50 CAD Model

Description

The EPCOS (TDK) electronic component is a fixed inductor with a 47 μH inductance and a 10% tolerance.

  • Inductance: 47 μH
  • Tolerance: 10%
  • Mount Type: Surface Mount
  • Package Size: 2220
  • Maximum DC Current: 700 mA
  • DC Resistance (DCR): 519 mΩ
  • Win Source Part Number: 1124248-B82442T1473K50
