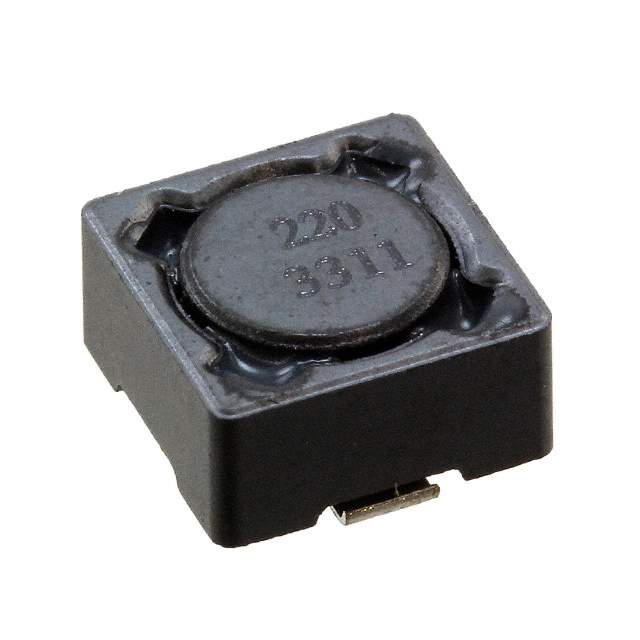

B82472G6223M Real Image
Same model may have multiple batches, images only for reference.

B82472G6223M

Part No B82472G6223M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 1.45A 91 MOHM SMD
Datasheet
B82472G6223M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.45A
Current - Saturation 1.3A
DC Resistance (DCR) 91 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.138" (3.50mm)
Win Source Part Number 049007-B82472G6223M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82472G6223M CAD Model

Description

B82472G6223M: Compact Power Inductor

The B82472G6223M inductor is crafted for applications requiring high power density. Its robust construction ensures reliable operation across diverse electronic systems.

Features and Benefits:

  • High Power Handling: Supports high current levels without signal degradation.
  • Low EMI: Minimizes electromagnetic interference, enhancing circuit performance.
  • Durable Construction: Designed to withstand harsh environmental conditions.

Applications/Projects:

  • Industrial Electronics
  • Automotive Systems
  • RF Applications

Engineers can trust the B82472G6223M in their projects for unmatched stability and efficiency.
