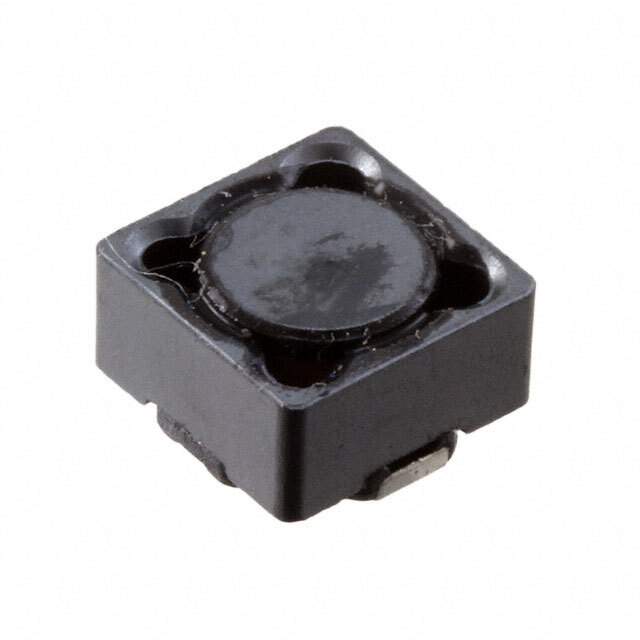

B82472P6105M000 Real Image
Same model may have multiple batches, images only for reference.

B82472P6105M000

Part No B82472P6105M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1MH 200MA 3.85 OHM SMD  /  1 mH Shielded Drum Core, Wirewound Inductor 200 mA 3.85Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series B82472P6
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 200 mA
Current - Saturation (Isat) 150mA
Shielding Shielded
DC Resistance (DCR) 3.85Ohm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 495-5682-6,B82472P6105M-ND,B82472P6105M,495-5682-1,495-5682-2
Standard Package 1,000
Win Source Part Number 1150449-B82472P6105M000
Ultra Librarian 3D Model Ultra Librarian B82472P6105M000 CAD Model

Description

The B82472P6 series inductor from EPCOS - TDK Electronics is a drum core, wirewound inductor that is shielded and has an inductance of 1mH.

  • Maximum Seated Height: 0.177" (4.50mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • DC Resistance (DCR): 3.85Ohm Max
  • Current Rating (Amps): 200mA
  • AEC-Q200: Yes
  • Temperature Range: -55°C to 150°C
  • Material: Ferrite
  • Package/Case: Nonstandard
  • Dimension: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • ECCN: EAR99 compliant
  • REACH: Unaffected
  • HTSUS Code: 8504.50.4000
