Same model may have multiple batches, images only for reference.

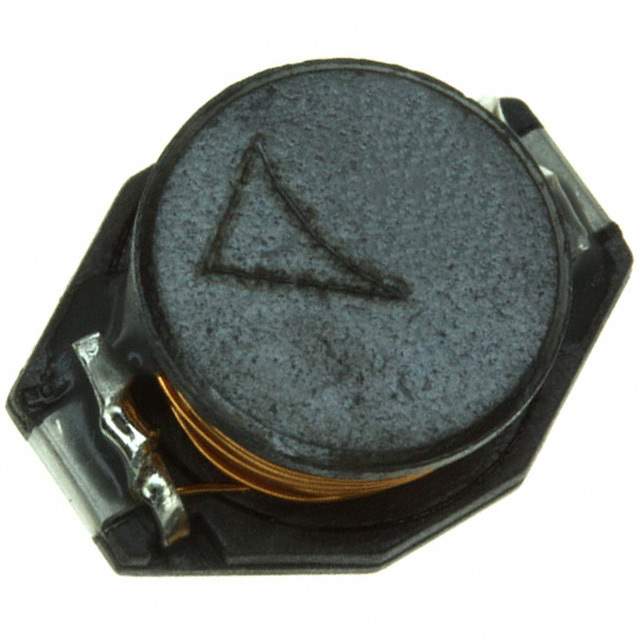

B82476A1224M Real Image
Same model may have multiple batches, images only for reference.

B82476A1224M

Part No B82476A1224M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 220UH 800MA 530 MOHM
Datasheet
B82476A1224M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 800mA
Current - Saturation 800mA
DC Resistance (DCR) 530 mOhm Max
Temperature Range - Operating -55°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.200" (5.08mm)
Win Source Part Number 200233-B82476A1224M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82476A1224M CAD Model

Description

Description

The B82476A1224M delivers high performance in power management systems, supporting efficient energy distribution across a variety of devices.

Features and Benefits

  • Exceptional current handling capacity for demanding applications.
  • Compact design ensures easy integration into diverse systems.
  • Reliable performance even under fluctuating environmental conditions.

Applications

  • Telecommunication systems requiring consistent power delivery.
  • Renewable energy regulators and inverters.
  • Industrial automation controllers.

Additional Details

Custom-engineered for performance, this inductor is essential for any project needing stable and reliable power management.
