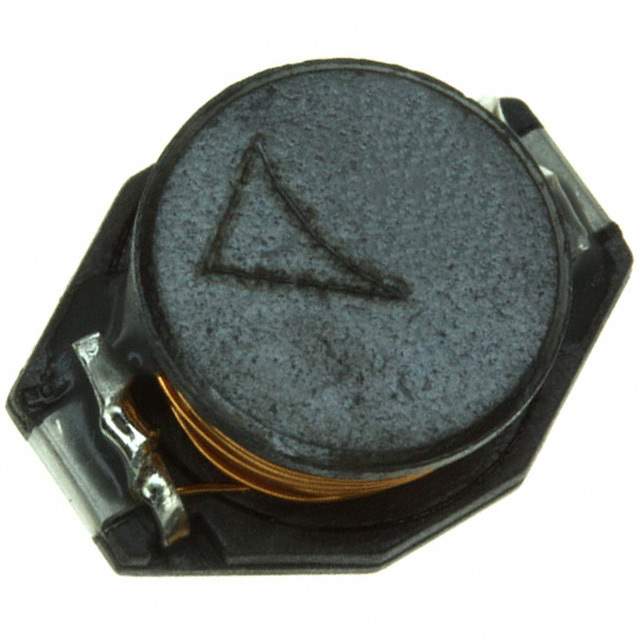

The B82476A1334M000 is a fixed inductor manufactured by EPCOS (TDK), part of their robust line of inductive components. Designed to provide stable and reliable performance, this inductor is well-suited for a variety of applications requiring inductance in electronic circuits, offering a balance of size, performance, and reliability.

Applications:

• Power supplies
• DC-DC converters
• EMI filters
• RF circuits
• General electronic circuitry requiring inductance

Features:

• Stable Inductance: Provides a consistent inductance value under varying operating conditions.
• Compact Size: Allows for high-density board layouts, saving valuable space.
• High Current Capability: Capable of handling significant current without saturation.
• RoHS Compliant: Meets environmental regulations, ensuring compliance with industry standards.
• Durable Construction: Built to withstand harsh environmental conditions.

Benefits:

• Improved Power Efficiency: Enhances the efficiency of power supply circuits.
• Effective EMI Suppression: Reduces electromagnetic interference, improving system performance.
• Enhanced Circuit Reliability: Provides stable and consistent performance, increasing overall reliability.
• Space Saving: Its compact size allows for smaller and more efficient designs.
• Reduced Noise: Minimizes noise in sensitive electronic circuits.

Technical Specifications:

Although the exact specifications can vary depending on the specific series, general specifications are usually as follows:

• Inductance: Rated at 330uH.
• Tolerance: Typically ±20%.
• Rated Current: Several Amperes, depending on the specific design.
• DC Resistance: Low, to minimize power loss and improve efficiency.
• Self-Resonant Frequency: High, enabling performance in high-frequency applications.
• Operating Temperature Range: Generally specified from -40°C to +125°C.
• Core Material: Often utilizes a ferrite core for its high permeability and low core losses.

The B82476A1334M000 inductor offers a blend of performance characteristics that make it suitable for a broad range of electronic applications. Its stable inductance, compact size, and ability to handle high current contribute to its versatility and usefulness in modern electronic designs.
