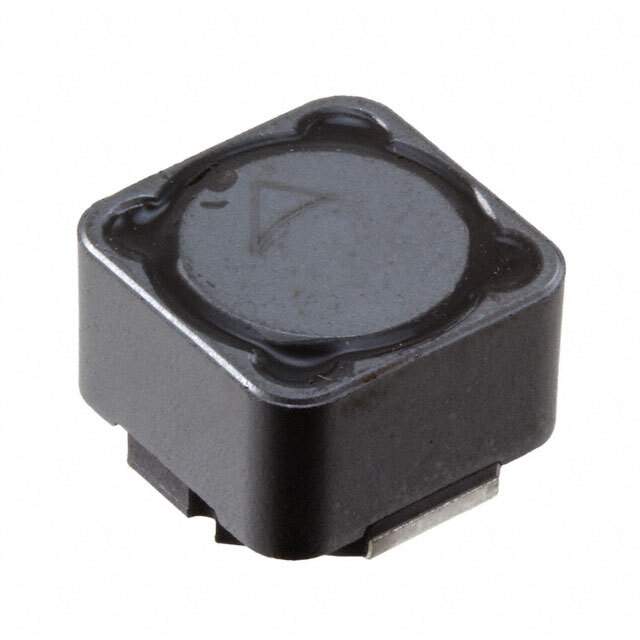

B82477P4223M

Part No B82477P4223M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 4.15A 35 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 4.15A
Current - Saturation 4.35A
DC Resistance (DCR) 35 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.335" (8.50mm)
Win Source Part Number 010692-B82477P4223M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82477P4223M CAD Model

Description

The B82477P4223M features an innovative design catering to the needs of modern electronics. It showcases excellent performance characteristics crucial for advanced technological solutions.

Features and Benefits:

  • High Inductance: Offers superior energy storage capabilities.
  • Thermal Stability: Maintains consistent performance under temperature variations.
  • Miniaturized Form Factor: Fits into compact devices with ease.

Applications:

  • Mobile devices
  • Energy-harvesting devices
  • Portable power banks

The B82477P4223M stands out with its ability to integrate seamlessly into cutting-edge technology solutions.
