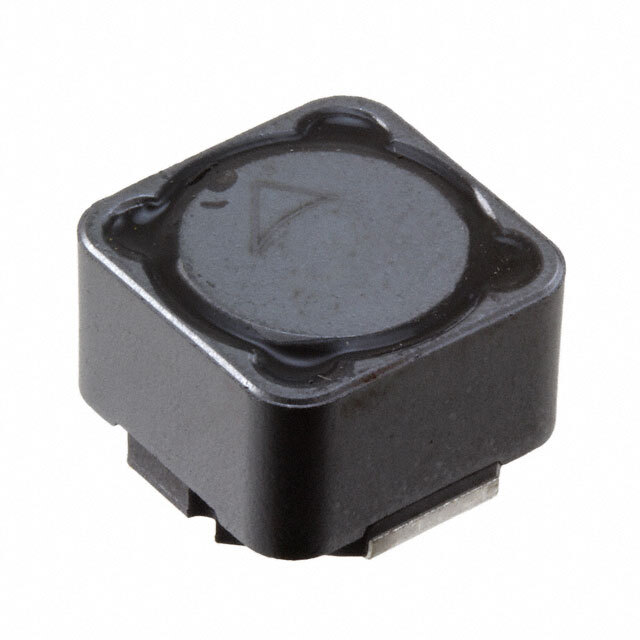

Same model may have multiple batches, images only for reference.
B82477P4223M000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82477P4223M000

Part No B82477P4223M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 22 µH Shielded Drum Core, Wirewound Inductor 4.15 A 35mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series B82477P4
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 4.15 A
Current - Saturation (Isat) 4.35A
Shielding Shielded
DC Resistance (DCR) 35mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1482495-B82477P4223M000
Ultra Librarian 3D Model Ultra Librarian B82477P4223M000 CAD Model
