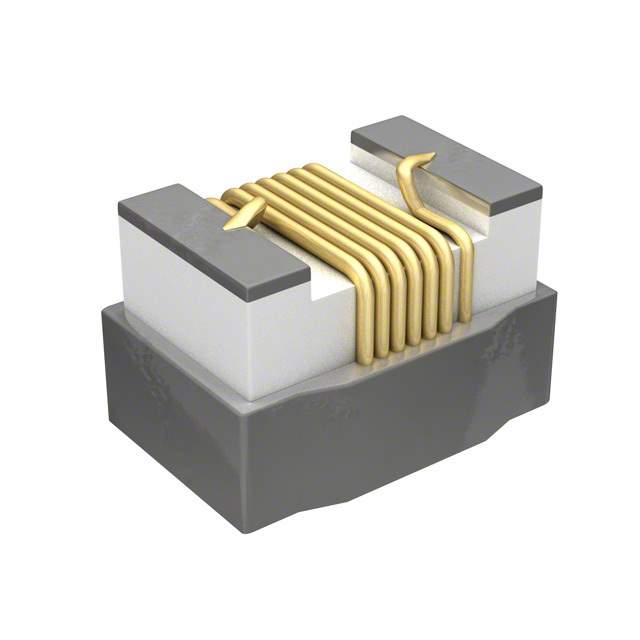

Same model may have multiple batches, images only for reference.

B82498F3271J001

Name: B82498F3271J001
Brand: EPCOS (TDK)
SKU: 1021136
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	B82498F3271J001
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	FIXED IND 270NH 270MA 1 OHM SMD / 270 nH Unshielded Drum Core, Wirewound Inductor 270 mA 1Ohm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	SIMID
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	270 nH
Tolerance	±5%
Current Rating (Amps)	270 mA
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	45 @ 250MHz
Frequency - Self Resonant	900MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Dimension	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max)	0.055" (1.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	B82498F3271J1,495-75358-1,B82498F3271J 1,B82498F3271J1-ND,495-75358-6,495-75358-2
Standard Package	3,000
Win Source Part Number	1021136-B82498F3271J001
Ultra Librarian 3D Model	Ultra Librarian B82498F3271J001 CAD Model

Alternative Products

Description

The SIMID series inductor from EPCOS - TDK Electronics is a drum core, wirewound inductor with an inductance of 270 nH and a tolerance of ±5%.

Type: Drum core, wirewound
Inductance: 270 nH
Tolerance: ±5%
Current: 270 mA
DC Resistance: 1 Ohm max
Q @ Freq: 45 @ 250MHz
Frequency - Self-Resonant: 900MHz
Package: Nonstandard
Dimension: 0.091" L x 0.067" W (2.30mm x 1.70mm)
Operating Temperature Range: -55°C to 125°C
Supplier Device Package: 0805 (2012 Metric)
AEC-Q200: Rated
Core Material: Ceramic
Shielding: Unshielded
