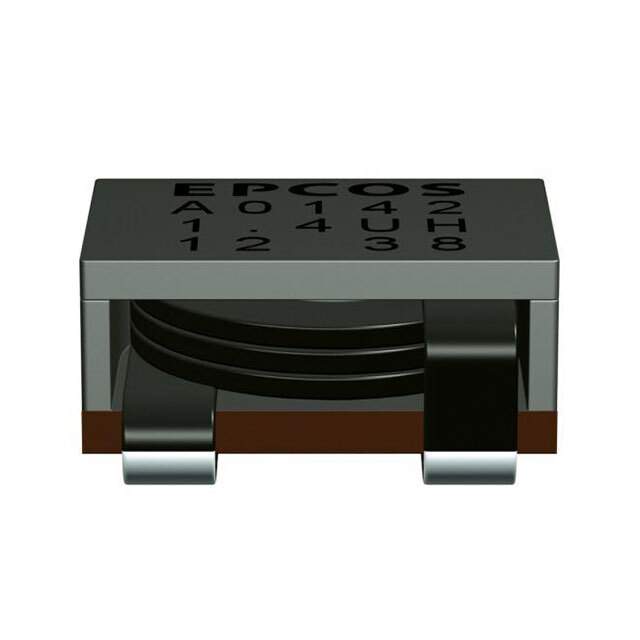

B82559A112A13 Real Image
Same model may have multiple batches, images only for reference.

B82559A112A13

Part No B82559A112A13
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 1.1uH 10% 10KHz Ferrite 20A 0.00172Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 20 A
DC Current 20 A
DC Resistance (DCR) 2.2 mΩ
Depth 11 mm
Height 4.95 mm
Height - Seated (Max) 4.953 mm
Inductance 1.1 µH
Inductance Tolerance 10 %
Lead Free Yes
Length 13.2 mm
Max DC Current 20 A
Maximum Operating Temperature 130 °C
Military Standard Not
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape (CT)
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Saturation Current 20 A
Schedule B 8504500000
Shielding Shielded
Termination SMD/SMT
Test Frequency 10 kHz
Tolerance 10 %
Weight 2.599991 g
Width 10.6934 mm
Win Source Part Number 998433-B82559A112A13
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82559A112A13 CAD Model

Description

The B82559A112A13 is a fixed inductor with a shielding feature.

  • Shielding: Shielding
  • Current Rating: 20 A
  • Inductance: 1.1 µH
  • Tolerance: 10%
  • Mounting Type: Through-hole
  • Package/Case: Nonstandard
  • Height: 4.95 mm
  • Width: 10.6934 mm
  • Depth: 11 mm
  • Packaging: Cut tape (CT)
  • Standard Package: 2
  • Lead-Free: Yes
  • RoHS: Compliant
