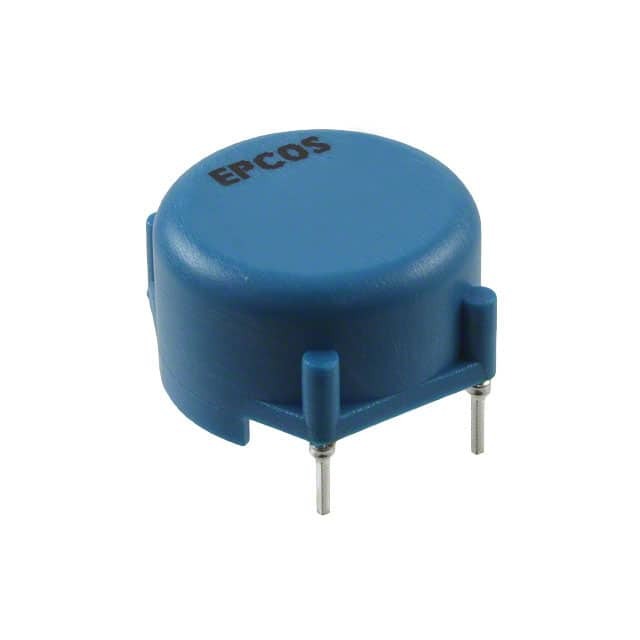

Same model may have multiple batches, images only for reference.

B82722A2102N001

Name: B82722A2102N001
Brand: EPCOS (TDK)
SKU: 1192260
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82722A2102N001
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 10MH 1A 2LN TH / 10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 480mOhm (Typ)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	EPCOS - TDK Electronics
Series	B82722
Package	Tray
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	10 mH @ 10 kHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	480mOhm (Typ)
Voltage Rating - AC	250V
Temperature Range - Operating	-40°C ~ 125°C
Approval Agency	ENEC, UR, VDE
Mounting Type	Through Hole
Dimension	0.894" L x 0.878" W (22.70mm x 22.30mm)
Height (Max)	0.524" (13.30mm)
Package / Case	Horizontal, 4 PC Pin
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	B82722A2102N1,B82722A2102N 1,B82722A2102N 1,495-2740
Standard Package	600
Win Source Part Number	1192260-B82722A2102N001
Ultra Librarian 3D Model	Ultra Librarian B82722A2102N001 CAD Model

Alternative Products

Description

The B82722 series is a common mode choke filter designed for power line applications.

Voltage Rating (Max): 250V AC
Current Rating (Max): 1A
Inductance @ Frequency: 10 mH @ 10 kHz
DC Resistance (DCR) (Typ): 480mOhm
Mounting Type: Through-Hole
Package/Case: Horizontal, 4 PC Pin
Temperature Range: -40°C to 125°C
Height: 0.524" (13.30mm)
Package: Tray
Standard Package: 600
Alternative Parts: B82722-A2102-N1, B82722-A2102N1, B82722A2102N 1, B82722A2102N1
MSL: Level 1 (Unlimited)
REACH: Affected
