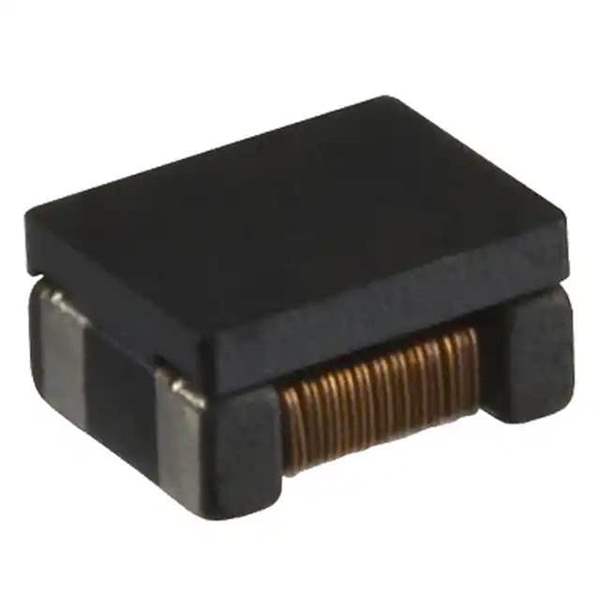

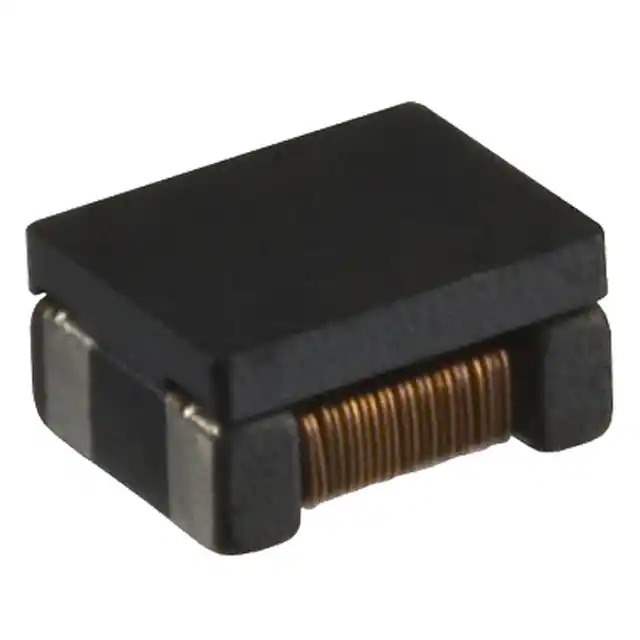

ACM2012-202-2P-T002 Real Image
Same model may have multiple batches, images only for reference.

ACM2012-202-2P-T002

Part No ACM2012-202-2P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 150MA 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACM
Package Tape & Reel
Product Status Not For New Designs
Filter Type Signal Line
Number of Lines 2
Current Rating (Max) 150mA
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case 0805 (2012 Metric), 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 852750-ACM2012-202-2P-T002
Ultra Librarian 3D Model Ultra Librarian ACM2012-202-2P-T002 CAD Model

Description

The 852750-ACM2012-202-2P-T002 is a common mode choke from TDK Corporation.

  • Product Name: 852750-ACM2012-202-2P-T002
  • Manufacturer: TDK Corporation
  • Series: ACM
  • Application: Signal Line Filtering
  • Voltage Rating: 50V (AC)
  • Current Rating: 150mA
  • Package Size: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.051" (1.30mm)
  • Package: Tape and Reel
  • Standard Package: 2,000 pieces
  • Operating Temperature Range: -40°C to 85°C
