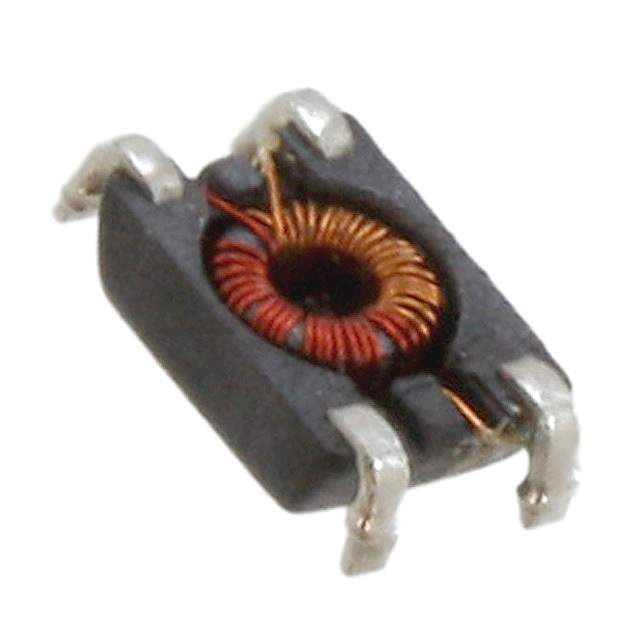

Same model may have multiple batches, images only for reference.

744212820

Name: 744212820
Brand: Wurth Electronics Inc
SKU: 857292
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744212820
Manufacturer	Wurth Electronics Inc
Catalog	Common Mode Chokes
Description	CMC 82UH 300MA 2LN 440 OHM SMD / 82 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 440 Ohms @ 180 MHz 300mA DCR 200mOhm
Datasheet	744212820 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Wurth Electronics Inc
Series	WE-SL1
Package	Tape & Reel
Product Status	Active
Filter Type	Power, Signal Line
Number of Lines	2
Impedance @ Frequency	440 Ohms @ 180 MHz
Inductance @ Frequency	82 µH @ 100 kHz
Current Rating (Max)	300mA
DC Resistance (DCR) (Max)	200mOhm
Voltage Rating - DC	80V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Size / Dimension	0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max)	0.071" (1.80mm)
Package / Case	Horizontal, 4 J-Lead
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	857292-744212820
Ultra Librarian 3D Model	Ultra Librarian 744212820 CAD Model

Alternative Products

Description

The WE-SL1 series common mode chokes from Wurth Electronics Inc are high-quality filters designed for use in power and signal line applications.

Package: Tape & reel
Voltage Rating: 80V (DC)
Size/Dimension: 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height: 0.071" (1.80mm)
Current Rating: 300mA
Impedance: 440 Ohms @ 180 MHz
Inductance: 82 µH @ 100 kHz
DC Resistance: 200mOhm (max)
Mounting: Surface mount
Package/Case: Horizontal, 4 J-lead
Temperature Range: -40°C to 105°C
