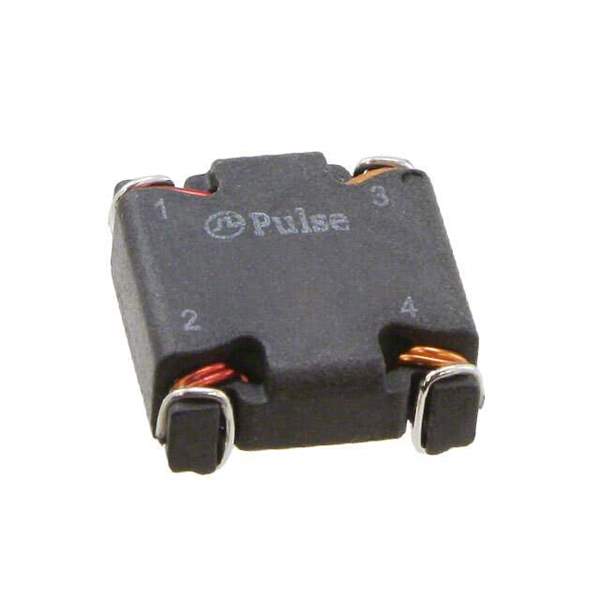

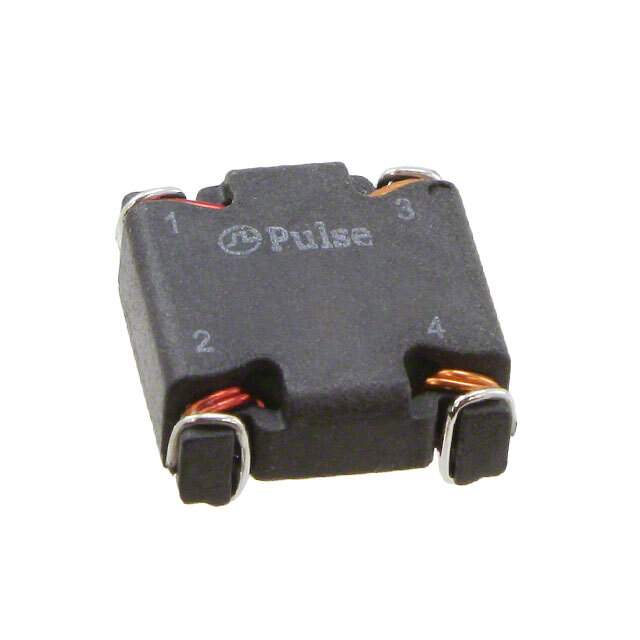

PA2744NL Real Image
Same model may have multiple batches, images only for reference.

PA2744NL

Part No PA2744NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 4A 2LN SMD  /  2 Line Common Mode Choke Surface Mount 4A DCR 13.2mOhm
Datasheet
PA2744NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Power
Package Tube
Number of Lines 2
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 13.2mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.220" (5.60mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 553-2182,PA2744NL-ND
Standard Package 40
Win Source Part Number 1002213-PA2744NL
Ultra Librarian 3D Model Ultra Librarian PA2744NL CAD Model

Description

The 1002213-PA2744NL is a common mode choke from Pulse Electronics Power that is designed for high-performance applications.

  • Operating Temperature: -40°C to 130°C
  • Maximum Current Rating: 4A
  • DC Resistance (DCR): 13.2mOhm
  • Packaging: Tube
  • Standard Package: 40
  • Mounting: SMD (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
