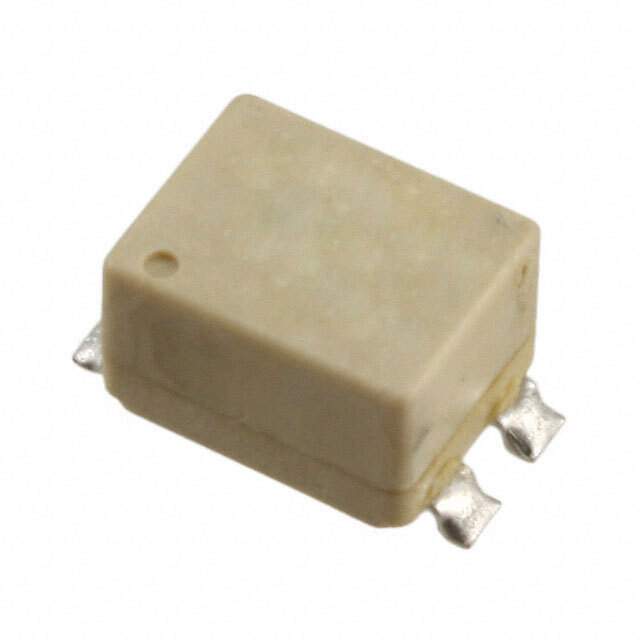

CPFC74NP-PS03H2A25 Real Image
Same model may have multiple batches, images only for reference.

CPFC74NP-PS03H2A25

Part No CPFC74NP-PS03H2A25
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 2.5A 2LN 300 OHM SMD / 2 Line Common Mode Choke Surface Mount 300 Ohms @ 160 MHz 2.5A DCR 120mOhm (Typ)
Datasheet
CPFC74NP-PS03H2A25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Sumida America Components Inc.
Series CPFC
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 300 Ohms @ 160 MHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 120mOhm (Typ)
Mounting SMD (SMT)
Dimension 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) 0.200" (5.08mm)
Package / Case Vertical, 4 Gull Wing
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 308-1560-1,308-1560-2,308-1560-6,CPFC74NPPS03H2A25
Standard Package 1,000
Win Source Part Number 969176-CPFC74NP-PS03H2A25
Ultra Librarian 3D Model Ultra Librarian CPFC74NP-PS03H2A25 CAD Model

Description

The Sumida America Components Inc. CPFC74NP-PS03H2A25 is a common mode choke filter from the CPFC series manufactured by Sumida America Components Inc.

  • Packaging: Tape and reel
  • Technology: SMT (Surface Mount Technology)
  • Filter Type: Power Line
  • Maximum Current Rating: 2.5A
  • Package: Vertical, 4 Gull Wing
  • Dimensions: 0.374" L x 0.224" W (9.50mm x 5.70mm)
  • DC Resistance (DCR): 120mOhm (Typ)
  • Impedance @ Frequency: 300 Ohms @ 160 MHz
