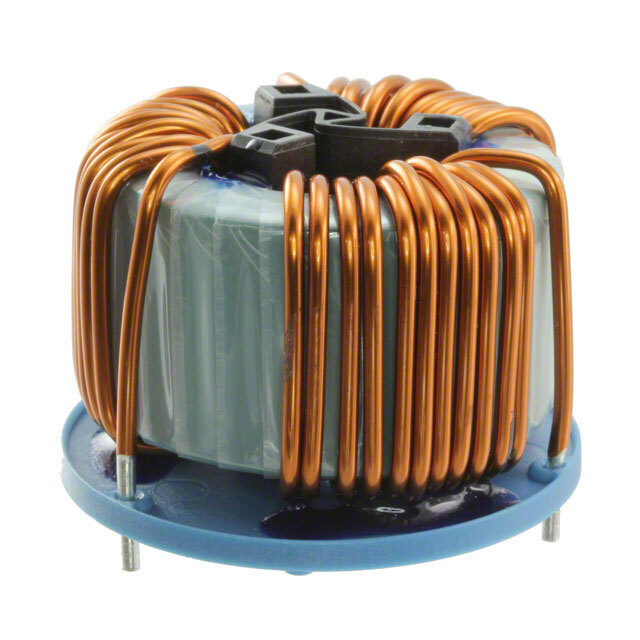

B82746S6702A040 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82746S6702A040

Part No B82746S6702A040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 6.2 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 8A DCR 18mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82746
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 6.2 mH @ 10 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 18mOhm (Typ)
Voltage Rating - AC 440/250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 2.047" Dia (52.00mm)
Height (Max) 1.535" (39.00mm)
Package / Case Vertical, 6 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482308-B82746S6702A040
Ultra Librarian 3D Model Ultra Librarian B82746S6702A040 CAD Model
