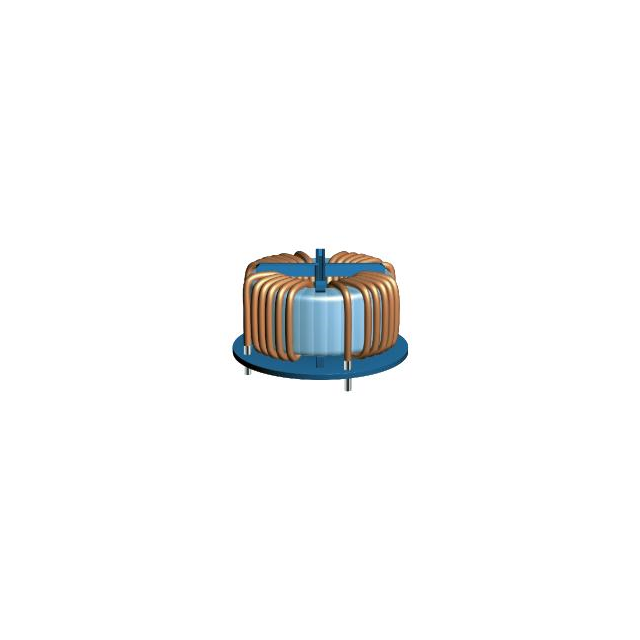

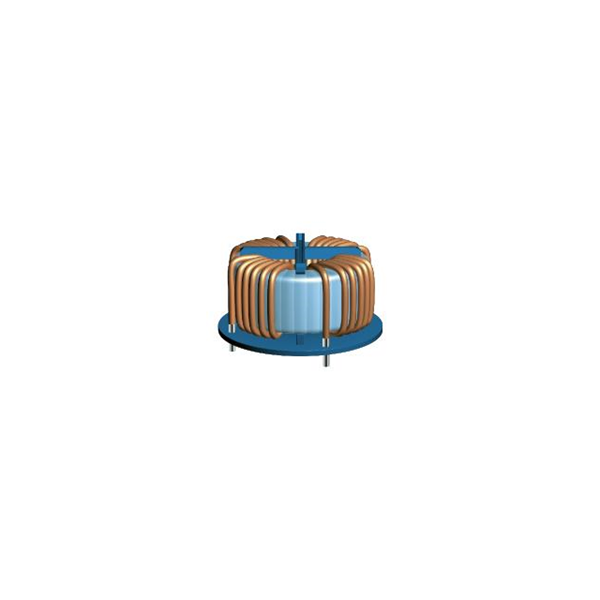

B82767S4123N030 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82767S4123N030

Part No B82767S4123N030
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 1.45 mH @ 10 kHz 4 Line Common Mode Choke Through Hole 12A DCR 7.1mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82767S4
Packaging Tray
Filter Type Power Line
Number of Lines 4
Inductance @ Frequency 1.45 mH @ 10 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 7.1mOhm (Typ)
Voltage Rating - AC 500/300V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.362" Dia (60.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Horizontal, 8 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1482319-B82767S4123N030
Ultra Librarian 3D Model Ultra Librarian B82767S4123N030 CAD Model
