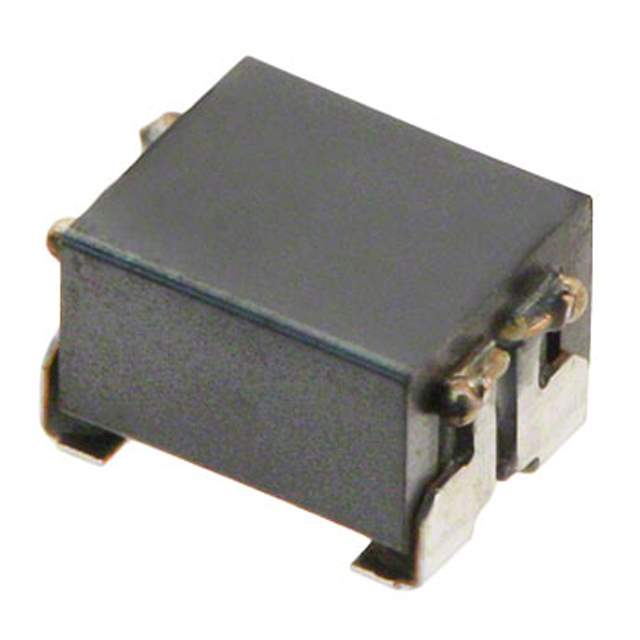

B82789S0223N002

Name: B82789S0223N002
Brand: EPCOS (TDK)
SKU: 1195095
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82789S0223N002
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 22UH 250MA 2LN SMD AEC-Q200 / 22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 250mA DCR 580mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	EPCOS - TDK Electronics
Series	B82789
Package	Tape & Reel
Filter Type	Signal Line
Number of Lines	2
Inductance @ Frequency	22 µH @ 100 kHz
Current Rating (Max)	250mA
DC Resistance (DCR) (Max)	580mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Dimension	0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Max)	0.118" (3.00mm)
Package / Case	Horizontal, 4 L-Lead
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	B82789S 223N 2,495-4411-6,B82789S 223N 2,495-4411-2,B82789S223N2,495-4411-1
Standard Package	2,500
Win Source Part Number	1195095-B82789S0223N002
Ultra Librarian 3D Model	Ultra Librarian B82789S0223N002 CAD Model

Alternative Products

Description

The EPCOS - TDK Electronics B82789 series common mode choke is a tape and reel package SMD (SMT) mounting choke.

Mounting Type: SMD (SMT)
Package: tape and reel
Voltage Rating (AC): 42V
Voltage Rating (DC): 80V
Current Rating: 250mA
Height: 0.118" (3.00mm)
Number of Lines: 2
Inductance: 22 µH @ 100 kHz
DC Resistance (DCR): 580mOhm
Operating Temperature: -55°C to 125°C
Application: signal line filtering
AEC-Q200: yes
Cross-Reference: B82789-S0223-N002, B82789-S223-N2, B82789S 223N 2, B82789S223N2
