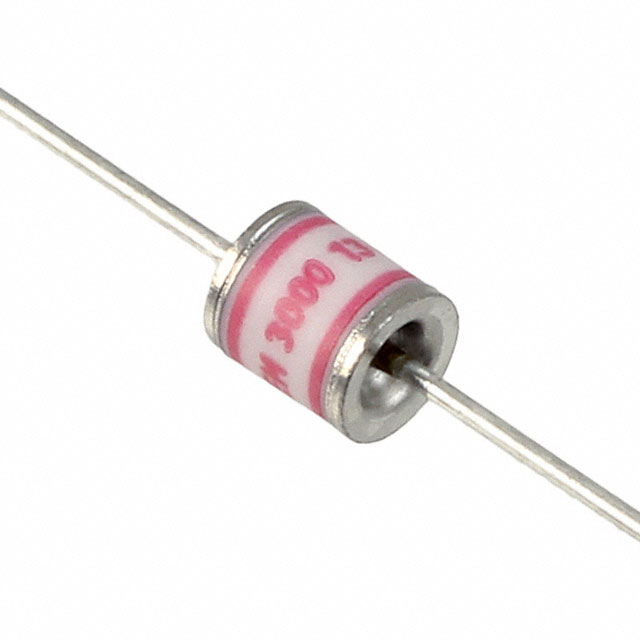

The B88069X4231S102 is a gas discharge tube (GDT) from EPCOS (TDK) designed for overvoltage protection. These GDTs are commonly used to protect sensitive electronic equipment from transient voltage surges caused by lightning strikes, power surges, and electrostatic discharge (ESD). The B88069X4231S102 is known for its high surge current capability, low capacitance, and reliable performance.

Applications

• Telecommunication equipment
• Surge protection devices (SPDs)
• Power supplies
• Industrial electronics
• Data lines

Features

• High surge current capability (e.g., 20 kA)
• Low capacitance (typically less than 1.5 pF)
• Fast response time
• RoHS compliant
• Compact size

Benefits

• Provides robust overvoltage protection
• Protects sensitive electronic components from damage
• Improves the reliability of electronic systems
• Helps prevent equipment downtime and repair costs
• Meets industry safety standards

Technical Specifications

The B88069X4231S102 typically has a surge current capability of 20 kA (8/20 µs pulse). Its DC spark-over voltage is around 230V, but it can vary depending on the exact specifications. The impulse spark-over voltage (1 kV/µs) is designed to be low to ensure fast response to transient surges. The capacitance is typically less than 1.5 pF, minimizing signal distortion. The insulation resistance is very high, usually greater than 10 GΩ. The GDT is designed for through-hole mounting and has a cylindrical shape. The operating temperature range typically spans from -40°C to +85°C. The housing is made of ceramic material, providing excellent insulation and arc resistance.
