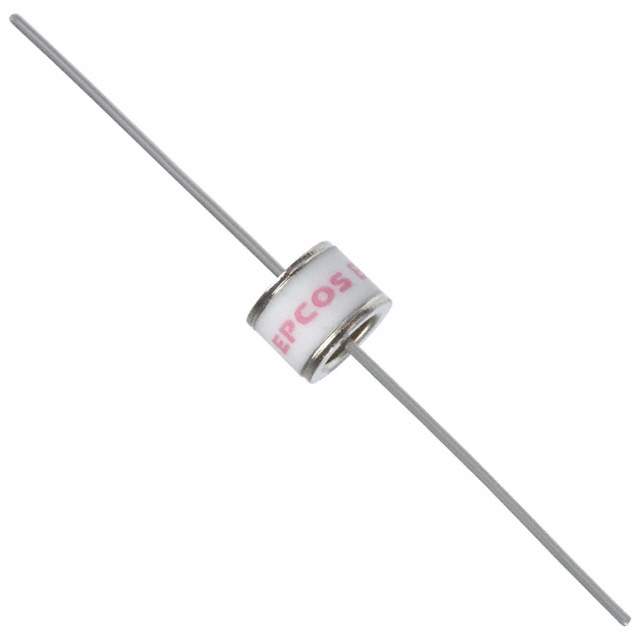

The B88069X720S102 is a Gas Discharge Tube (GDT) arrester from EPCOS (TDK), designed to provide robust overvoltage protection for sensitive electronic equipment. It's primarily used to safeguard against transient voltage surges caused by lightning strikes, power line disturbances, and electrostatic discharge (ESD). GDTs are known for their high surge current capability and low capacitance, making them ideal for protecting communication lines and power supplies without significantly affecting signal integrity.

Applications

• Telecommunications equipment (e.g., telephone lines, DSL lines, network interfaces)
• Power supply systems
• Surge protection devices (SPDs)
• Industrial control systems
• Data transmission lines

Features

• High surge current capability: Withstands large surge currents without damage.
• Low capacitance: Minimizes signal distortion and insertion loss.
• Fast response time: Quickly clamps overvoltage events.
• Compact size: Allows for easy integration into various circuit designs.
• RoHS compliant: Environmentally friendly, meeting regulatory standards.

Benefits

• Effective overvoltage protection: Safeguards equipment from damage caused by surges.
• Improved system reliability: Reduces downtime and maintenance costs.
• Enhanced safety: Protects personnel and equipment from hazardous voltage levels.
• Minimal signal degradation: Ensures optimal performance of protected circuits.
• Long service life: Provides reliable protection over an extended period.

Additional Details

The B88069X720S102 GDT operates by remaining in a high-impedance state under normal operating conditions. When a voltage surge exceeds its spark-over voltage, the gas within the tube ionizes, creating a low-impedance path to ground, thus diverting the surge current away from the protected equipment. Once the surge subsides, the GDT returns to its high-impedance state.

Key specifications include the DC spark-over voltage (the voltage at which the GDT begins to conduct), the impulse discharge current (the maximum surge current the GDT can withstand), and the capacitance. These parameters are crucial for selecting the appropriate GDT for a specific application and ensuring effective overvoltage protection.
