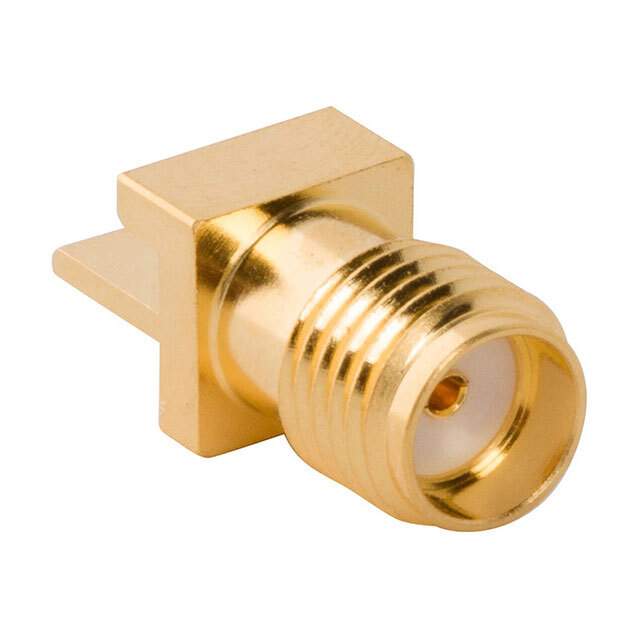

Same model may have multiple batches, images only for reference.

901-10511-1

Name: 901-10511-1
Brand: Amphenol-RF Division
SKU: 1381448
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	901-10511-1
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN SMA JACK STR 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet	901-10511-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Mfr	Amphenol-RF Division
Series	-
Package	Bulk
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Board Edge, End Launch
Mounting Feature	Flange
Cable Group	-
Fastening Type	Threaded
Frequency - Max	26.5 GHz
Number of Ports	1
Features	-
Housing Color	-
Ingress Protection	-
Center Contact Material	-
Includes	-
Body Material	-
Body Finish	-
Center Contact Plating	-
Dielectric Material	-
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	170 V
Mating Cycles	500
Insertion Loss	-
Base Product Number	901-10
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
California Prop 65	Warning Information
Standard Package	50 pcs
Win Source Part Number	1381448-901-10511-1
Ultra Librarian 3D Model	Ultra Librarian 901-10511-1 CAD Model

Description

The 1381448-901-10511-1 is a threaded SMA female socket coaxial connector assembly.

Connector Type: Jack, Female Socket
Voltage - Rated: 170 V
Frequency - Max: 26.5 GHz
Impedance: 50 Ohm
Contact Termination: Solder
Mounting Feature: Flange
Mounting Type: Board Edge, End Launch
Manufacturer: Amphenol-RF Division
Packaging: Bulk
Quantity: 50
Mating Cycle: 500
Operating Temperature: -65°C to 165°C
REACH: Compliant
ECCN: EAR99
