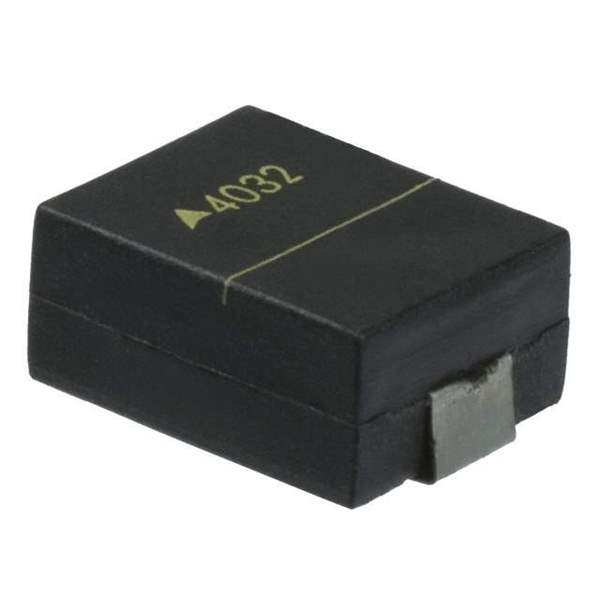

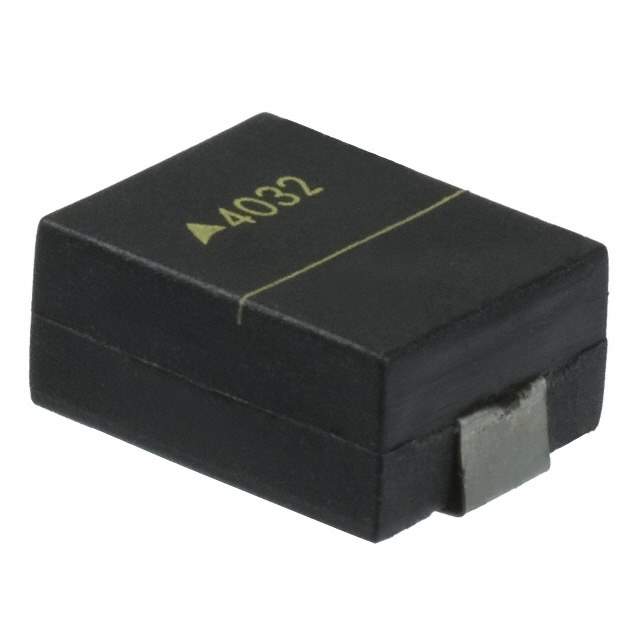

The CU4032K14G2 is a ceramic Transient Voltage Suppressor (TVS) varistor from EPCOS (TDK), designed for overvoltage protection in various electronic circuits. It provides bidirectional protection against electrostatic discharge (ESD) and other transient voltage events.

Applications

• ESD protection for automotive electronics.
• Surge protection for power lines in industrial equipment.
• Protection of data lines in communication systems.
• Overvoltage protection in LED lighting applications.
• Protection of sensitive components in consumer electronics.

Features

• Compact 4032 case size.
• Bidirectional protection.
• Fast response time to transient events.
• Low clamping voltage.
• High surge current capability.
• Surface-mount design (SMD).
• Lead-free termination.
• RoHS compliant.

Benefits

• Provides reliable overvoltage protection for sensitive electronic components.
• Extends the lifespan of electronic devices by mitigating the effects of voltage surges.
• Compact size allows for easy integration into space-constrained applications.
• Fast response time ensures effective protection against fast transient events.
• Helps meet regulatory requirements for surge immunity.
• Reduces warranty claims related to overvoltage damage.

Additional Details

The CU4032K14G2 has a typical capacitance of 14 pF. It is designed for reflow soldering processes. The operating temperature range is typically -55°C to +125°C. The varistor material is a ceramic semiconductor with non-linear voltage-current characteristics. It presents a high resistance at normal operating voltages and a very low resistance during transient events, effectively clamping the voltage and diverting the surge current. The bidirectional characteristic allows it to protect from both positive and negative voltage spikes.
