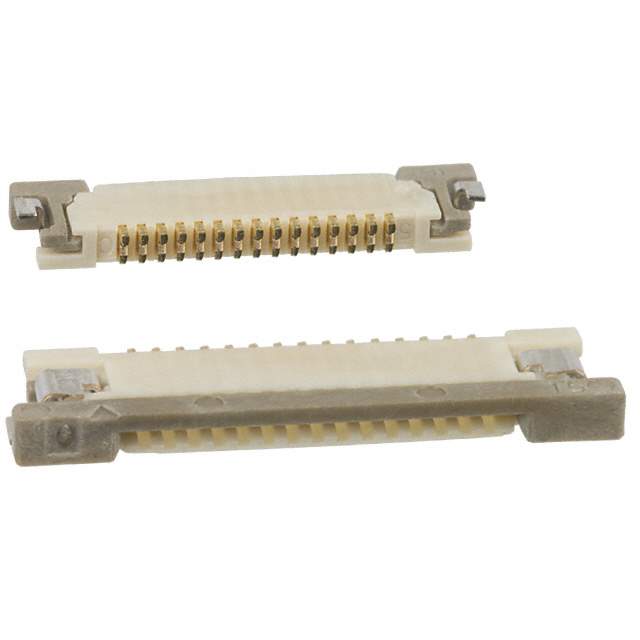

XF2L-1535-1A Real Image
Same model may have multiple batches, images only for reference.

XF2L-1535-1A

Part No XF2L-1535-1A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 15POS 0.50MM R/A
Datasheet
XF2L-1535-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Contact Finish Thickness 5.9μin (0.15μm)
Housing Color Natural
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 115164-XF2L-1535-1A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF2L-1535-1A CAD Model

Description

The Omron XF2L-1535-1A is a surface mount, right angle connector that is used in various industrial applications.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Win Source Part Number: 115164-XF2L-1535-1A
  • Feature: Zero Insertion Force (ZIF)
  • Voltage Rating: 50V
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Natural
