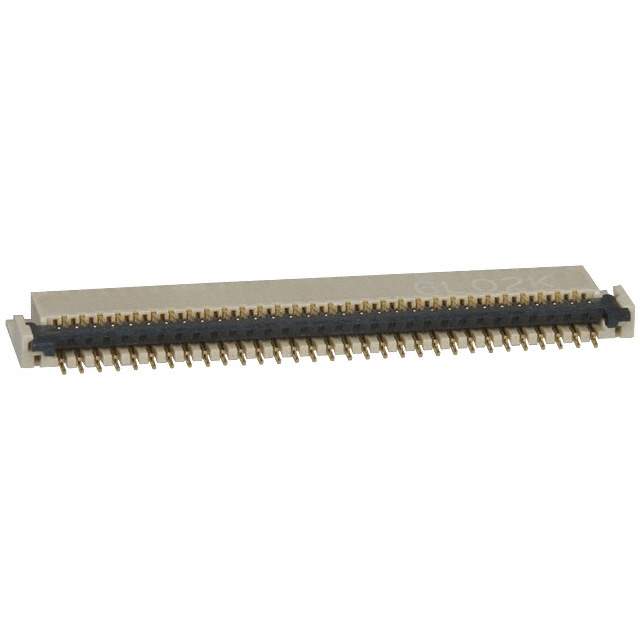

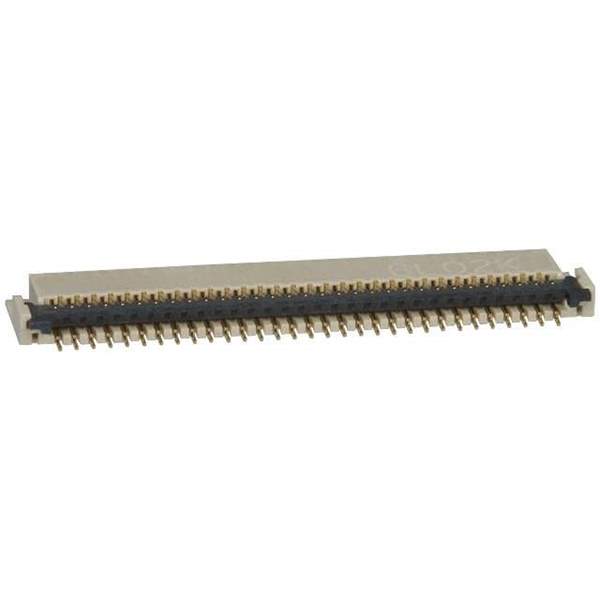

FH23-61S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH23-61S-0.3SHW(05)

Part No FH23-61S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 61POS 0.30MM R/A / 61 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH23-61S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH23
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.049" (1.25mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Low Insertion Force (LIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.3A
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Base Product Number FH23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names FH2361S03SHW05,*FH23-61S-0.3SHW(05),586-1310-0-05,HFQ461DKR,HFQ461CT,HFQ461TR
Standard Package 2,500
Win Source Part Number 1197936-FH23-61S-0.3SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH23-61S-0.3SHW(05) CAD Model

Description

The FH23-61S-0.3SHW(05) connector is a low insertion force (LIF) type FPC connector with 61 positions and a pitch of 0.012 inches (0.30mm).

  • Connector Type: FPC
  • Number of Positions: 61
  • Pitch: 0.012 inches (0.30mm)
  • Mounting Type: Solder
  • Current Rating: 0.3A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Halogen-Free: Yes
  • Packaging: Tape and Reel
  • Units per Package: 2,500
