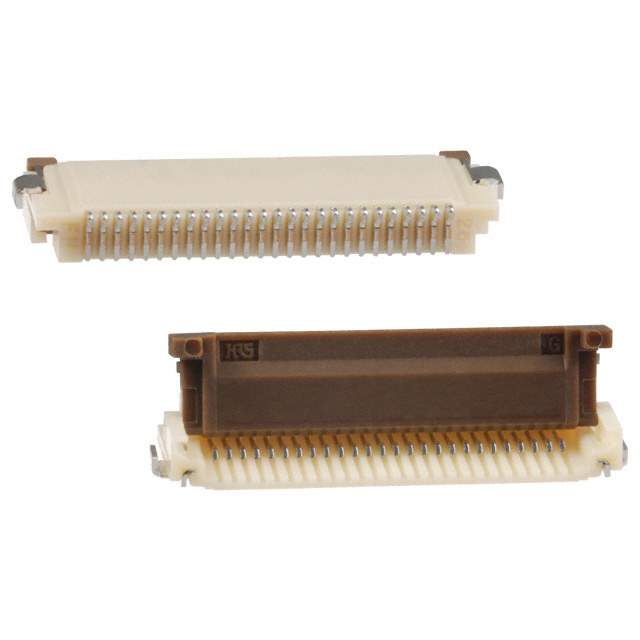

FH12F-26S-0.5SH

Part No FH12F-26S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 26POS 0.5MM R/A / 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH12F-26S-0.5SH Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.18mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Polyamide (PA) , Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Standard Package 2,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1345673-FH12F-26S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH12F-26S-0.5SH CAD Model

Description

The FH12F-26S-0.5SH connector is part of the FH12 series of connectors from Hirose Electric Co Ltd.

  • Feature: Zero insertion force (ZIF)
  • Application: FFC, FPC (Flat Flexible) Connector Assemblies
  • Positions: 26
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Material: Phosphor bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.079" (2.00mm)
  • Flat Flex Types: FFC, FPC
  • Housing Material: Polyamide (PA), nylon
  • Locking Feature: Flip lock
  • Mounting Type: Surface mount, right angle
  • Temperature Range: -40°C ~ 85°C
  • Status: Obsolete
  • RoHS: Non-compliant
