Same model may have multiple batches, images only for reference.

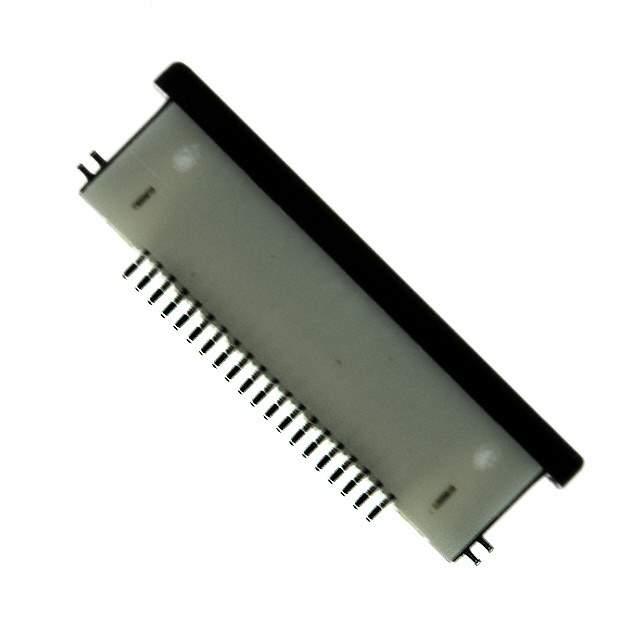

20FLZ-RSM2-TB(LF)(SN)(P) Real Image
Same model may have multiple batches, images only for reference.

20FLZ-RSM2-TB(LF)(SN)(P)

Part No 20FLZ-RSM2-TB(LF)(SN)(P)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description Ffc / Fpc Board Connector, Flz Series, Surface Mount, Receptacle, 20, 0.5 Mm Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Current Rating 500 mA
Gender Receptacle
Housing Material Nylon
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Contacts 20
Number of Positions 20
Number of Rows 1
Packaging Tape & Reel (TR)
Pitch 508 µm
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Wire/Cable Type Straight
Win Source Part Number 964362-20FLZ-RSM2-TB(LF)(SN)(P)
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 20FLZ-RSM2-TB(LF)(SN)(P) CAD Model

Description

The 964362-20FLZ-RSM2-TB(LF)(SN)(P) is a 20-position receptacle FFC/FPC connector manufactured by JST Sales America Inc.

  • Positions: 20
  • Connector Type: Receptacle FFC/FPC
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 °C
