Same model may have multiple batches, images only for reference.

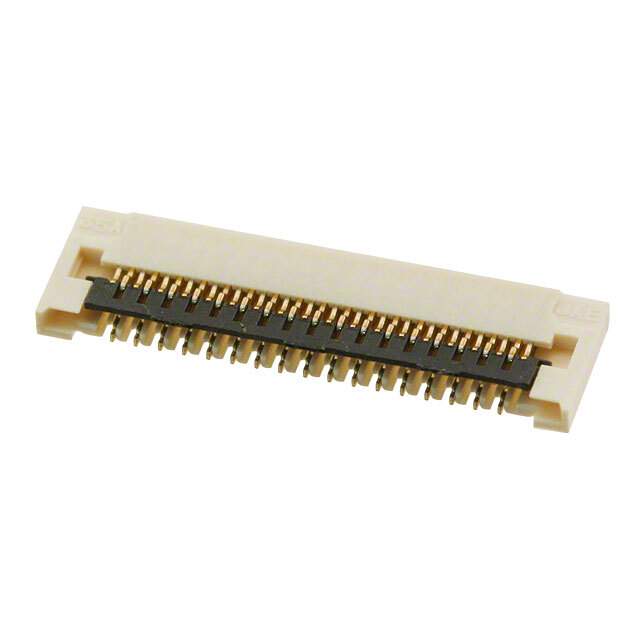

FF02S35SV1-R3000 Real Image
Same model may have multiple batches, images only for reference.

FF02S35SV1-R3000

Part No FF02S35SV1-R3000
Manufacturer JAE Electronics
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 35POS 0.30MM R/A  /  35 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FF02S35SV1-R3000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JAE Electronics
Series FF02S
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 35
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.12mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.35A per Contact
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Black
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names FF02S35SV1-ND,670-1710-ND,-670-1710-2,-670-1710-1,-670-1710,-670-1710-ND,-FF02S35SV1,670-1710-6,-FF02S35SV1-ND,670-1710,670-1710-2,-670-1710-1-ND,FF02S35SV1R3000,-FF02S35SV1-R3000,670-1710-1,FF02S35SV1
Standard Package 3,000
Win Source Part Number 1190536-FF02S35SV1-R3000
Ultra Librarian 3D Model Ultra Librarian FF02S35SV1-R3000 CAD Model

Description

The JAE Electronics FF02S35SV1-R3000 is an FFC, FPC (Flat Flexible) Connector that has a zero insertion force (ZIF) feature.

  • Positions: 35
  • Pitch: 0.30mm
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Voltage Rating: 50V
  • Cable End Type: Straight
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.12mm
  • Locking Feature: Flip Lock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Product Status: Obsolete
  • Standard Package: 3,000
  • Alternative Part: FF02S35SV1R3000
