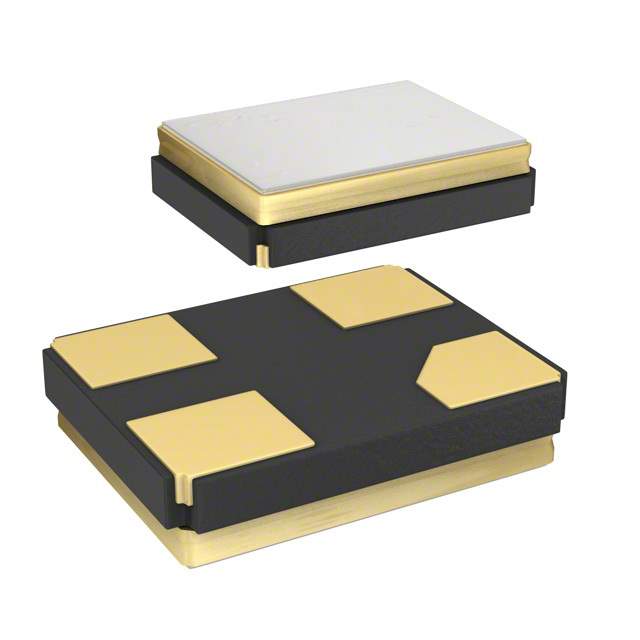

FA-20H 26.0000MF20X-K3 Real Image
Same model may have multiple batches, images only for reference.

FA-20H 26.0000MF20X-K3

Part No FA-20H 26.0000MF20X-K3
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 26.0000MHZ 10PF SMD / 26 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series FA-20H
Package Tape & Reel
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names Q24FA20H0019312,FA-20H 26.0000MF20X-K3-ND,SER4243DKR,FA-20H26.0000MF20X-K3,828407,SER4243CT,SER4243TR
Standard Package 250
Win Source Part Number 1058432-FA-20H 26.0000MF20X-K3
Ultra Librarian 3D Model Ultra Librarian FA-20H 26.0000MF20X-K3 CAD Model

Description

The FA-20H 26.0000MF20X-K3 is a MHz crystal that belongs to the FA-20H series of crystals, oscillators, and resonators.

  • Frequency: 26 MHz
  • ESR: 60 ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
