Same model may have multiple batches, images only for reference.

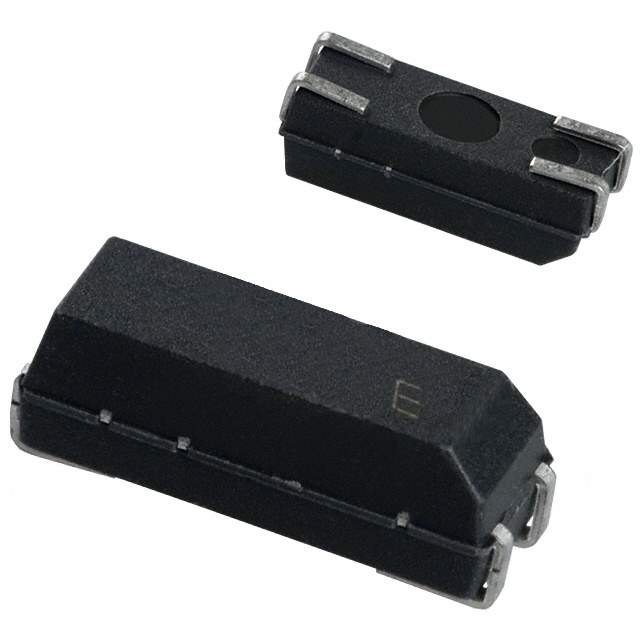

MC-405 32.7680K-A0:ROHS Real Image
Same model may have multiple batches, images only for reference.

MC-405 32.7680K-A0:ROHS

Part No MC-405 32.7680K-A0:ROHS
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 50 kOhms 4-SOJ, 2.29mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr EPSON
Series MC-405
Package Tape & Reel
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 2.29mm pitch
Size / Dimension 0.378" L x 0.160" W (9.60mm x 4.06mm)
Height - Seated (Max) 0.142" (3.60mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1349634-MC-405 32.7680K-A0:ROHS
Ultra Librarian 3D Model Ultra Librarian MC-405 32.7680K-A0:ROHS CAD Model

Description

The MC-405 is a kHz crystal (tuning fork) that is a part of the crystals, oscillators, resonators - crystals category.

  • Package Type: Tape & Reel
  • Standard Package: 1,000
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 50 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12.5pF
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package / Case: 4-SOJ, 2.29mm pitch
  • Operating Temperature: -40°C to 85°C
