Same model may have multiple batches, images only for reference.

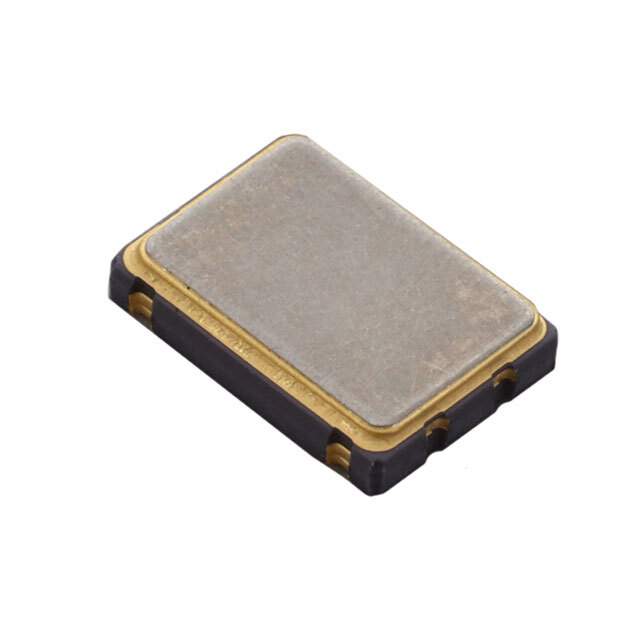

SG-8002CA 1.8432M-PCML0 Real Image
Same model may have multiple batches, images only for reference.

SG-8002CA 1.8432M-PCML0

Part No SG-8002CA 1.8432M-PCML0
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 1.8432MHZ CMOS SMD  /  1.8432 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-8002CA
Package Tape & Reel (TR)
Product Status Not For New Designs
Base Resonator Crystal
Type XO (Standard)
Frequency 1.8432 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 28mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 16mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-8002CA1.8432M-PCML0,SG-8002CA 1.8432M-PCML0-ND
Standard Package 1,000
Win Source Part Number 1092622-SG-8002CA 1.8432M-PCML0
Ultra Librarian 3D Model Ultra Librarian SG-8002CA 1.8432M-PCML0 CAD Model

Description

The Epson SG-8002CA 1.8432M-PCML0 is an oscillator electronic component with a frequency of 1.8432 MHz.

  • Type: XO (standard)
  • Output: CMOS output
  • Frequency Stability: ±100ppm
  • Voltage Supply: 3.3V
  • Current Supply (max): 28mA
  • Win Source Part Number: 1092622
  • RoHS Compliance: compliant
