Same model may have multiple batches, images only for reference.

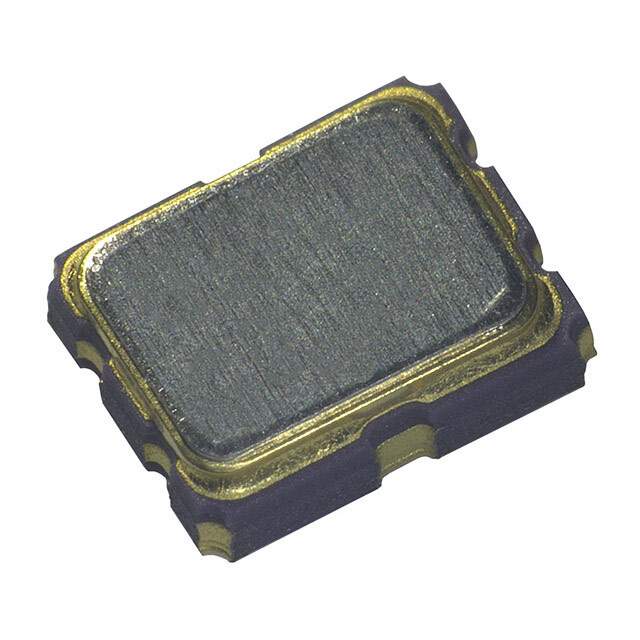

SG3225EEN 156.250000M-CJGA3 Real Image
Same model may have multiple batches, images only for reference.

SG3225EEN 156.250000M-CJGA3

Part No SG3225EEN 156.250000M-CJGA3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 156.25MHZ 3.3V LVP / 156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG3225EEN
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 60mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 114-SG3225EEN156.250000M-CJGA3DKR,114-SG3225EEN156.250000M-CJGA3CT,X1G005221000812,114-SG3225EEN156.250000M-CJGA3TR
Standard Package 250
Win Source Part Number 974635-SG3225EEN 156.250000M-CJGA3
Ultra Librarian 3D Model Ultra Librarian SG3225EEN 156.250000M-CJGA3 CAD Model

Description

The SG3225EEN 156.250000M-CJGA3 XO oscillator is a high-quality electronic component produced by Epson.

  • Oscillator Type: Standard XO
  • Frequency: 156.25 MHz
  • Function: Enable/Disable
  • Output: LVPECL
  • Frequency Stability: ±50ppm
  • Current Supply: 60mA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C to 85°C
  • Package: 6-SMD, No Lead
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
