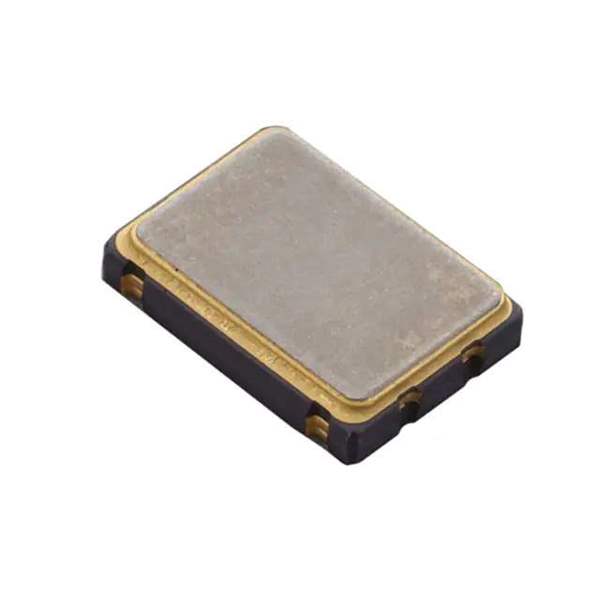

SG-8002CE-STB Real Image
Same model may have multiple batches, images only for reference.

SG-8002CE-STB

Part No SG-8002CE-STB
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Programmable Oscillators
Description XTAL OSC PROG XO TTL 5V 50PPM
Datasheet
SG-8002CE-STB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Programmable Oscillators
Mfr Epson Electronics America Inc-Semiconductor Div
Series SG-8002
Package Bulk
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Available Frequency Range 1 MHz ~ 125 MHz
Function Standby
Output TTL
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 40mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.041" (1.05mm)
Current - Supply (Disable) (Max) 50 µA
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 933356-SG-8002CE-STB
Ultra Librarian 3D Model Ultra Librarian SG-8002CE-STB CAD Model

Description

The 933356-SG-8002CE-STB is a programmable oscillator from the SG-8002 series by Epson Electronics America Inc-Semiconductor Div.

  • Frequency Range: 1MHz to 125MHz
  • Supply Voltage: 5V
  • Maximum Current Consumption: 40mA
  • Feature: Standby Function
  • Output: TTL Output
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Seated Height: 0.041" (1.05mm)
  • Mounting: Surface Mountable
  • Package: 4-SMD, No Lead
  • Operating Temperature Range: -20°C to 70°C
  • Frequency Stability: ±50ppm
