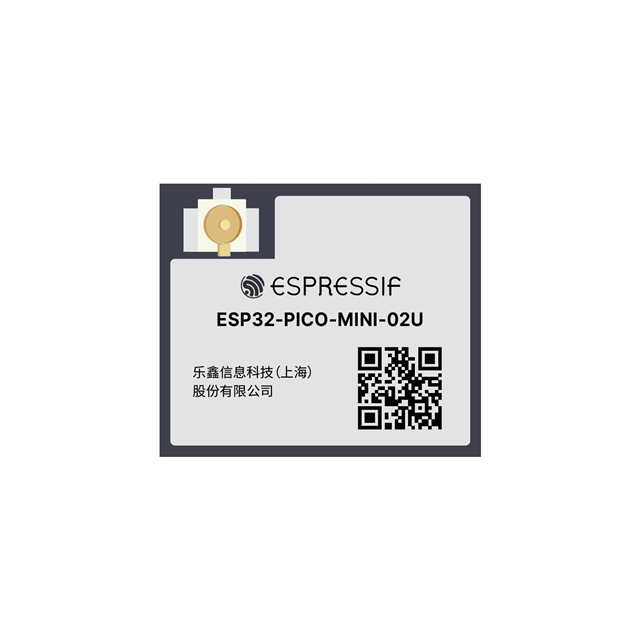

ESP32-PICO-MINI-02U-N8R2 Real Image
Same model may have multiple batches, images only for reference.

ESP32-PICO-MINI-02U-N8R2

Part No ESP32-PICO-MINI-02U-N8R2
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE, ESP32-PICO-V3-02 WIT / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Datasheet
ESP32-PICO-MINI-02U-N8R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation 8DPSK, DQPSK
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part ESP32-PICO-V3-02
Memory Size 8MB Flash, 2MB PSRAM, 448kB ROM, 536kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 111mA ~ 117mA
Current - Transmitting 248mA ~ 368mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 53-SMD Module
Base Product Number ESP32
Standard Package 650
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1340999-ESP32-PICO-MINI-02U-N8R2
Ultra Librarian 3D Model Ultra Librarian ESP32-PICO-MINI-02U-N8R2 CAD Model

Description

The 1340999-ESP32-PICO-MINI-02U-N8R2 is a tape and reel package product suitable for RF and wireless applications.

  • Packaging: Tape and Reel
  • Application: RF and Wireless
  • Series: ESP32
  • Frequency: 2.4GHz
  • Protocols: 802.11b/g/n and Bluetooth v4.2 +EDR, Class 1, 2 and 3
  • Data Rate: 150Mbps
  • Memory Size: 8MB Flash, 2MB PSRAM, 448kB ROM, and 536kB SRAM
  • Standard Package: 650 Pieces
  • Current-Receiving: 111mA ~ 117mA
  • Mounting Type: Surface Mount
  • Package/Case: 53-SMD Module
  • Operating Temperature: -40°C ~ 85°C (TA)
