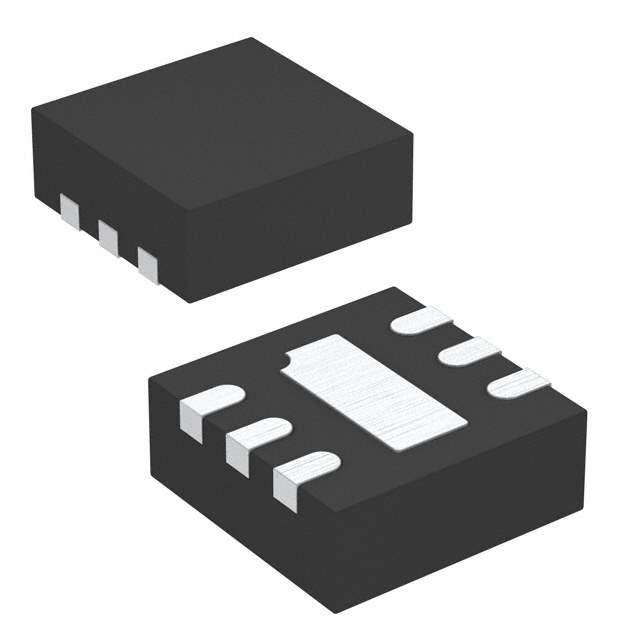

The Exar IML8683NL-ADJ-TR is a high-efficiency LED driver designed for a variety of lighting applications. It is a step-down (buck) converter that provides a constant current output, ensuring consistent brightness and long lifespan for the LEDs. The adjustable output current allows for flexible design and optimization for different LED configurations. It is typically used in applications requiring precise and efficient LED control, such as architectural lighting, signage, and general illumination.

Applications

• Architectural Lighting: Used to drive LEDs in indoor and outdoor architectural lighting applications.
• LED Signage: Provides precise and efficient control of LEDs in illuminated signs and displays.
• General Illumination: Suitable for driving LEDs in various general lighting applications, such as LED bulbs and fixtures.
• Automotive Lighting: Can be used in automotive lighting systems, such as daytime running lights (DRL) and interior lighting.
• Backlighting: Drives LEDs in LCD backlighting applications for displays and monitors.

Features

• High Efficiency: Provides high efficiency step-down conversion, minimizing power losses and heat generation.
• Adjustable Output Current: Allows for flexible design and optimization for different LED configurations.
• Constant Current Output: Ensures consistent brightness and long lifespan for the LEDs.
• Wide Input Voltage Range: Operates over a wide input voltage range, accommodating various power supply options.
• Over-Voltage Protection (OVP): Protects the LEDs from damage due to over-voltage conditions.

Benefits

• Energy Savings: High efficiency reduces power consumption, resulting in energy savings and lower operating costs.
• Precise LED Control: Constant current output ensures consistent brightness and prolongs the lifespan of the LEDs.
• Flexible Design: Adjustable output current allows for customization for different LED configurations and lighting requirements.
• Enhanced Reliability: Over-voltage protection safeguards the LEDs from damage, improving system reliability.
• Simplified System Design: Integrated features reduce the number of external components required, simplifying design and assembly.

Additional Details

The IML8683NL-ADJ-TR operates with a switching frequency typically in the hundreds of kHz, allowing for compact external components. It supports PWM (Pulse Width Modulation) dimming, enabling precise control of LED brightness. The device also includes thermal shutdown protection, preventing overheating and ensuring safe operation. The compact package size allows for easy integration into various lighting applications. The device is designed to be compliant with various regulatory standards for lighting equipment.
