The SP6205EM5-L-2.5/TR is a low dropout (LDO) regulator from Exar Corporation, providing a fixed 2.5V output voltage. It is designed with a low quiescent current ('L' version), making it suitable for battery-powered and energy-sensitive applications. The /TR suffix indicates tape and reel packaging for automated assembly.

Applications:

• Portable Electronics
• Battery-Powered Devices
• Wireless Communication Modules
• Microcontroller Power Supplies
• Sensor Power Supplies
• Memory Power Supplies
• Low-Power Logic Circuits

Features:

• Low Dropout Voltage: Ensures output regulation even with a small difference between input and output voltage.
• Low Quiescent Current ('L' version): Minimizes power consumption in standby or light load conditions.
• Stable with Ceramic Capacitors: Allows for the use of small and cost-effective ceramic capacitors.
• Short Circuit Protection: Protects the regulator and load from damage due to output shorts.
• Over-Temperature Protection: Prevents thermal damage to the regulator at high temperatures.

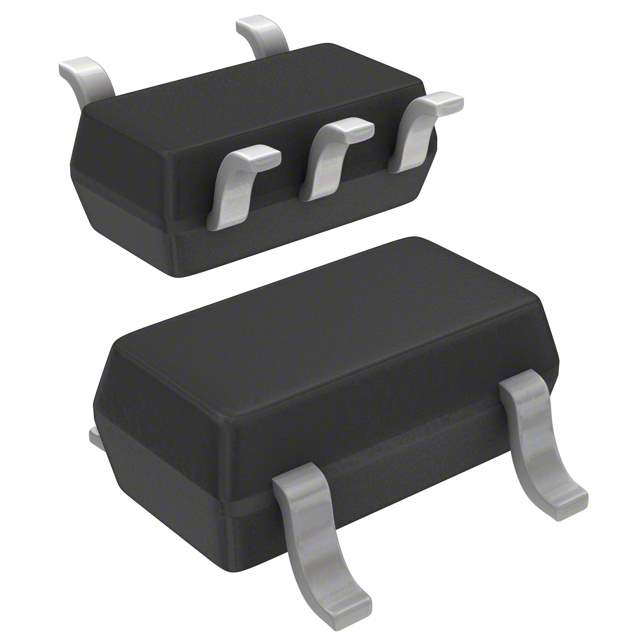

• Small SOT23-5 Package: Allows for compact designs and efficient use of board space.
• Fixed 2.5V Output Voltage: Provides a precise and reliable 2.5V voltage source.

Benefits:

• Extended Battery Life: Low quiescent current minimizes power drain and maximizes operating time in battery-powered applications.
• Improved System Reliability: Built-in protection features prevent damage to the regulator and connected circuitry.
• Reduced Solution Size and Cost: Stable operation with ceramic capacitors reduces the need for bulky and expensive tantalum capacitors.
• Simplified Design: Easy to integrate into various applications due to its stable performance and small package size.
• Consistent Performance: Delivers a stable 2.5V output voltage under varying load and temperature conditions.

Additional Details:

The SP6205EM5-L-2.5/TR operates from an input voltage typically up to 6V. The low dropout voltage characteristic allows the regulator to maintain regulation even when the input voltage is only slightly higher than the 2.5V output. The device's thermal shutdown feature disables the output if the junction temperature exceeds a safe limit, preventing permanent damage. The /TR suffix indicates that the component is provided in tape and reel packaging, facilitating automated assembly processes.
