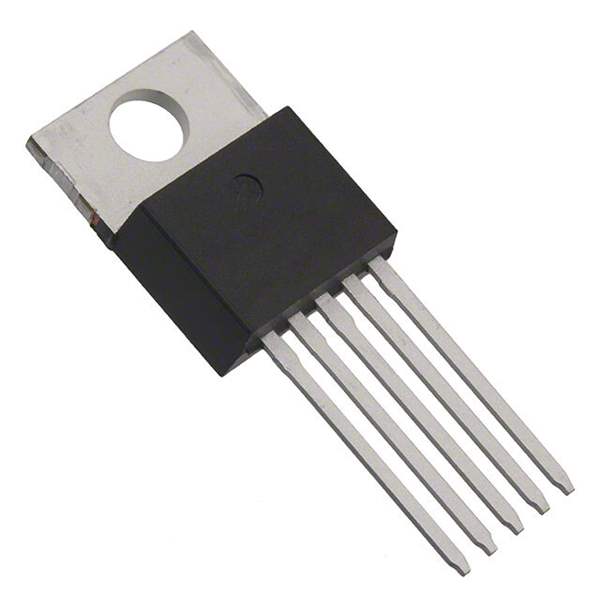

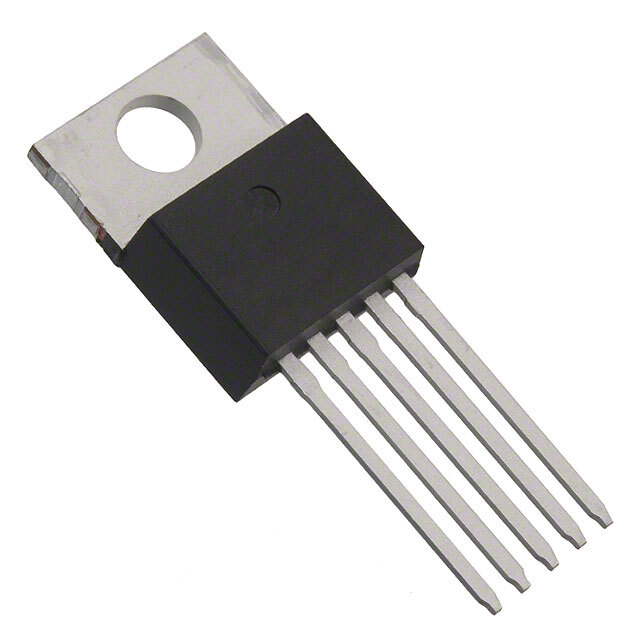

SPX29152U5-L Exar Corporation
Same model may have multiple batches, images only for reference.

SPX29152U5-L

Part No SPX29152U5-L
Manufacturer Exar Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1.5A TO220-5 / LDO Regulator Pos 1.25V 1.5A 5-Pin(5+Tab) TO-220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 16V
Output Voltage 1.25V
Output Voltage MAX 15.4V
Voltage Dropout (Maximum) 0.6V @ 1.5A
Output Current 1.5A
Operating Supply Current 25mA
Control Features Enable
Protection Features Over Current, Reverse Polarity, Transient Voltage
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package TO-220-5
Win Source Part Number 795320-SPX29152U5-L
Popularity Medium
Supply and Demand Status Limited
Family Name SPX29152
Introduction Date March 21, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SPX29152U5-L CAD Model

Description

The SPX29152U5-L is a regulator manufactured by Exar Corporation.

  • Package: TO-220-5
  • Mounting Style: Through hole
  • Part Status: Obsolete (EOL)
  • Introduction Date: March 21, 2002
  • Output Configuration: Positive
  • Output Type: Adjustable
  • Control Feature: Enable
  • Protection Feature: Over current, reverse polarity, and transient voltage
  • Output Voltage: 1.25V to 15.4V
  • Voltage Input: 0V to 16V
  • Voltage Dropout at Maximum: 0.6V @ 1.5A
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Popularity Rating: Medium
